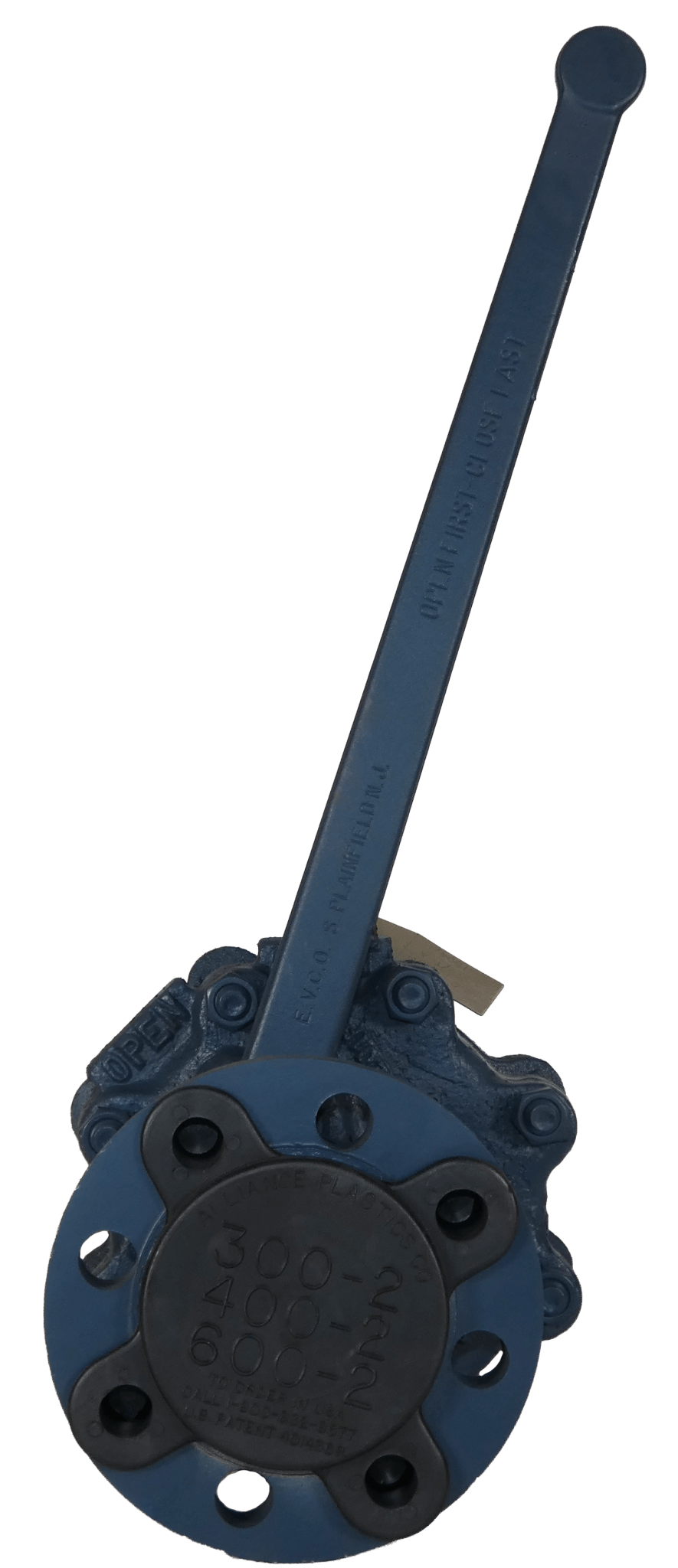

4000-1A-2 - Front

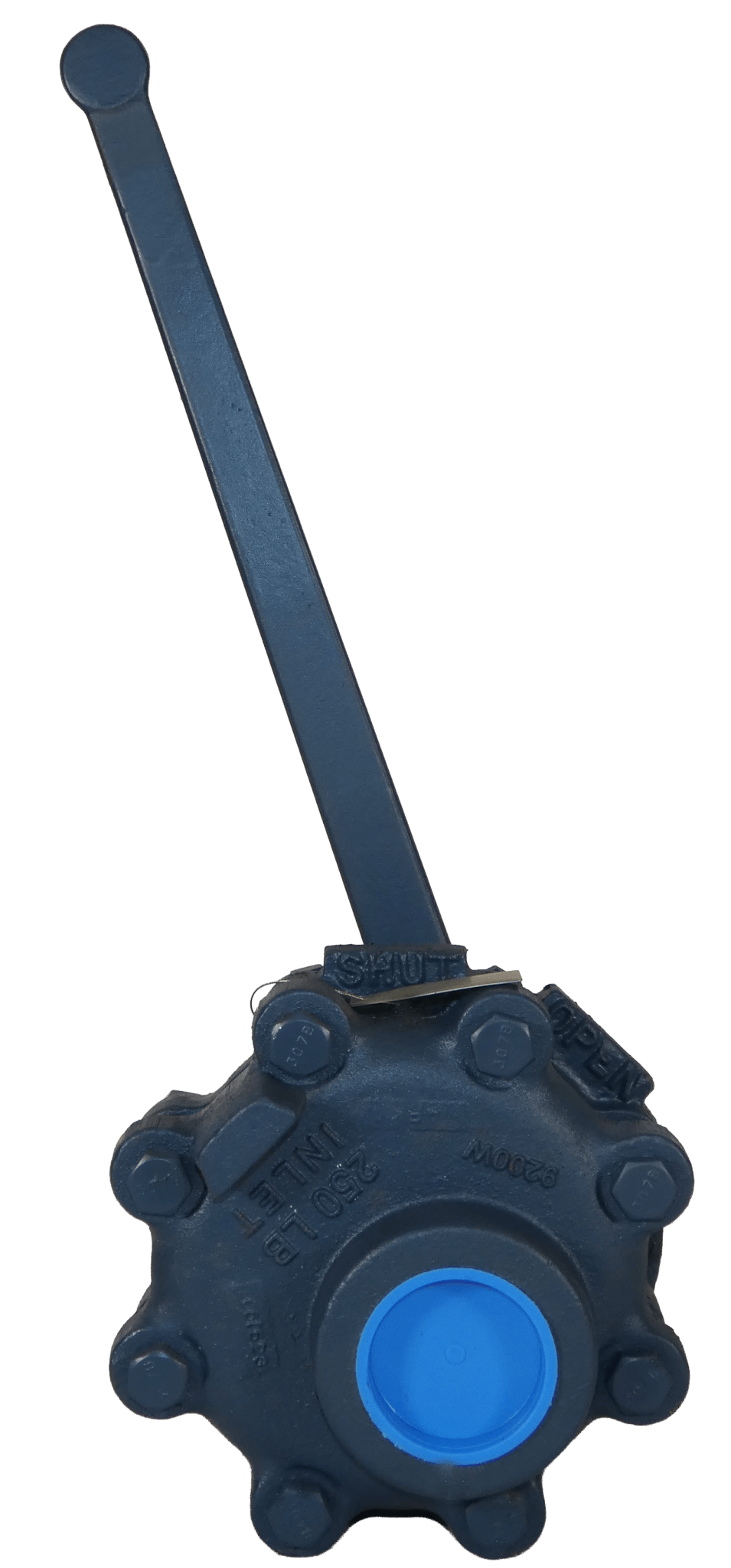

4000-1A-2 - Back

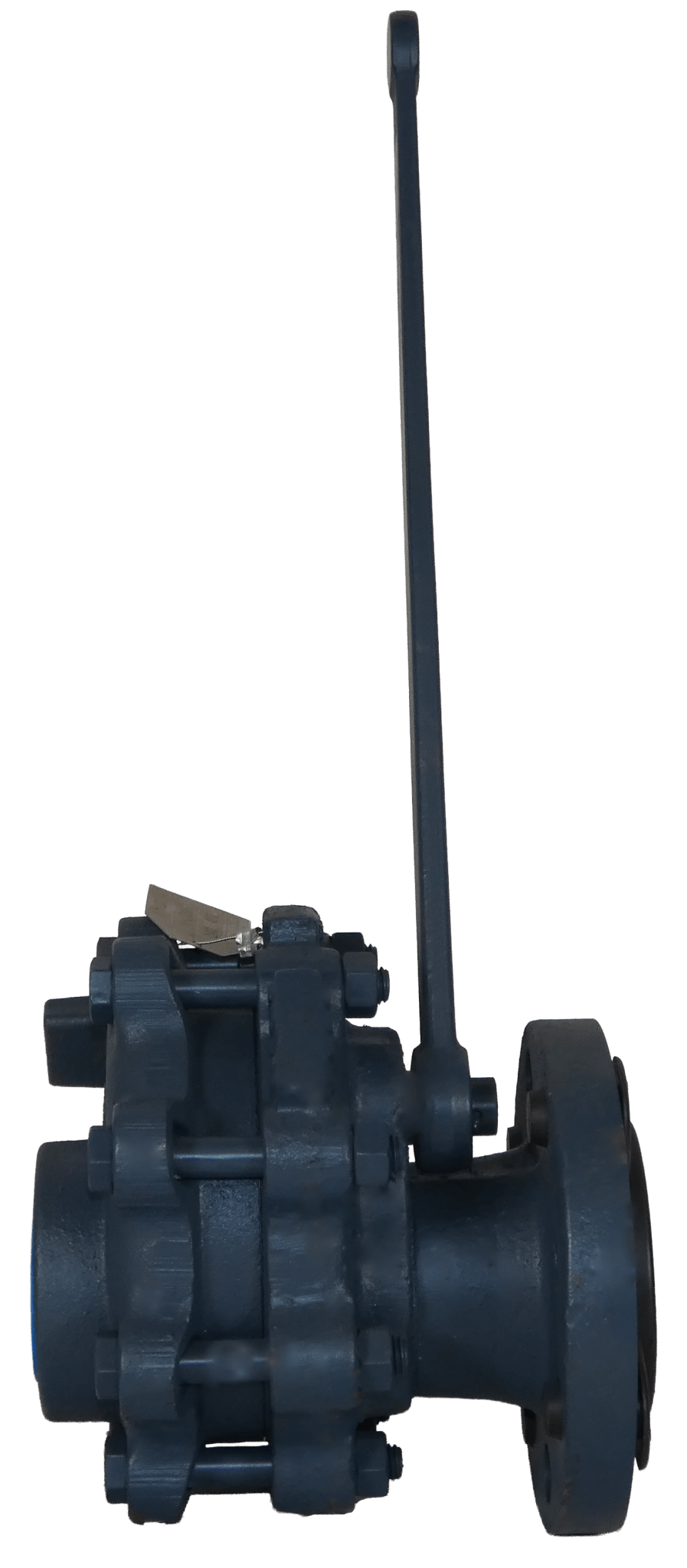

4000-1A-2 - Side-1

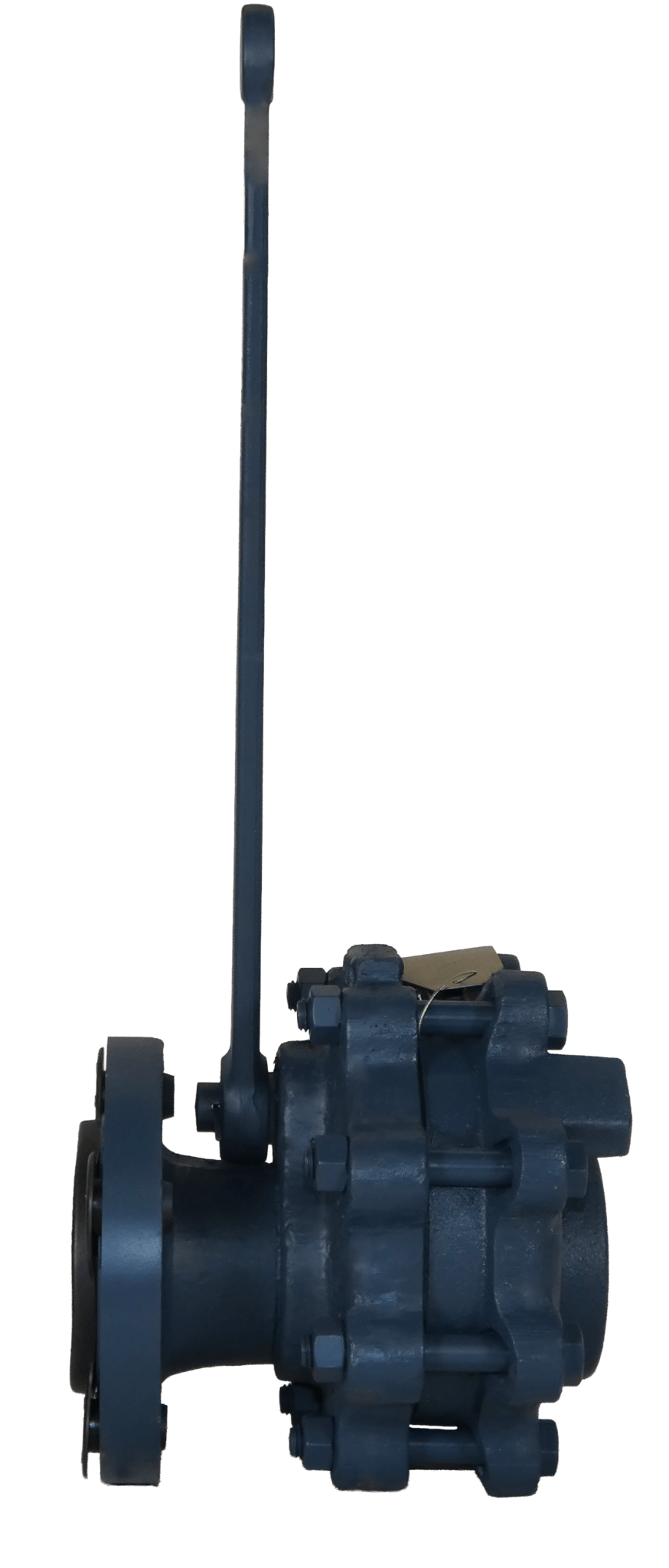

4000-1A-2 - Side-2

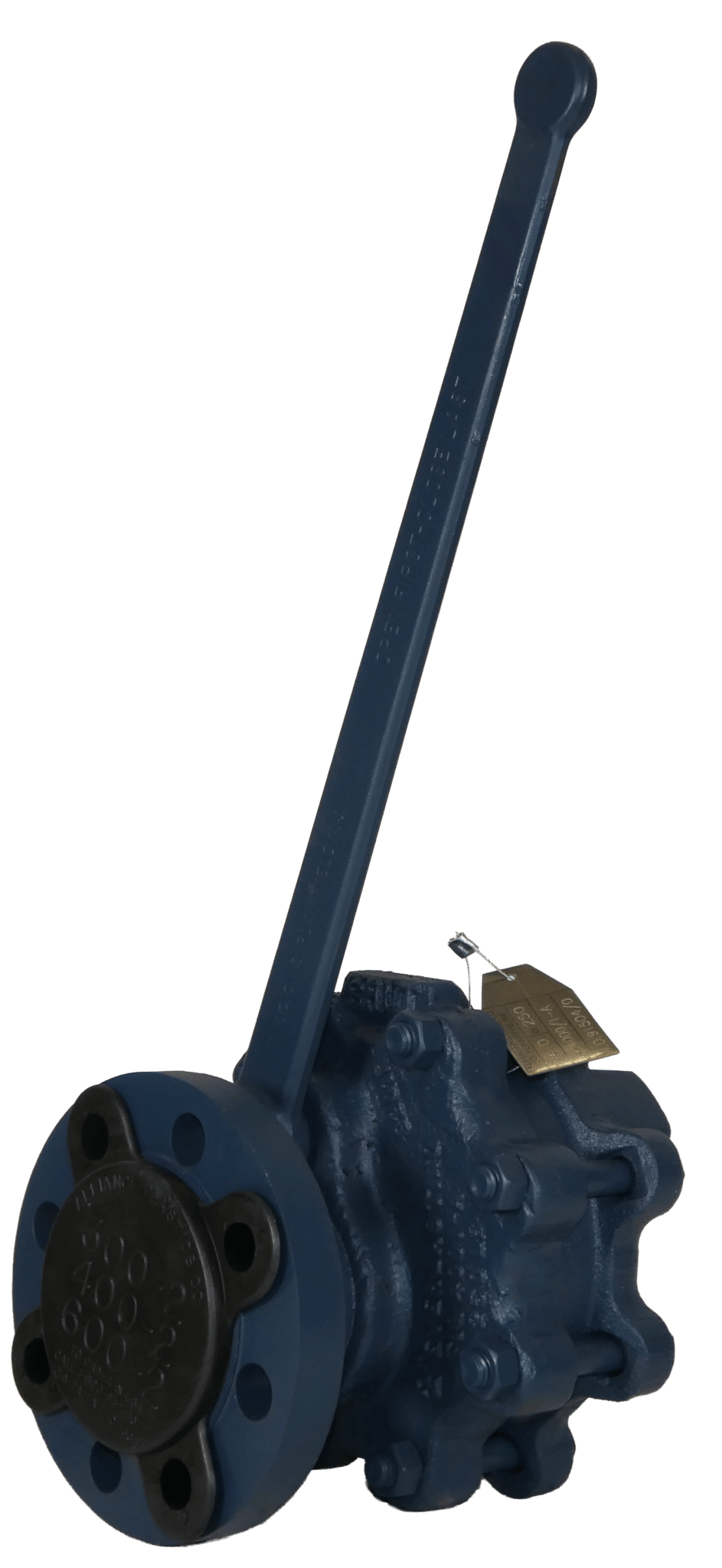

4000-1A-2 - Angle-1

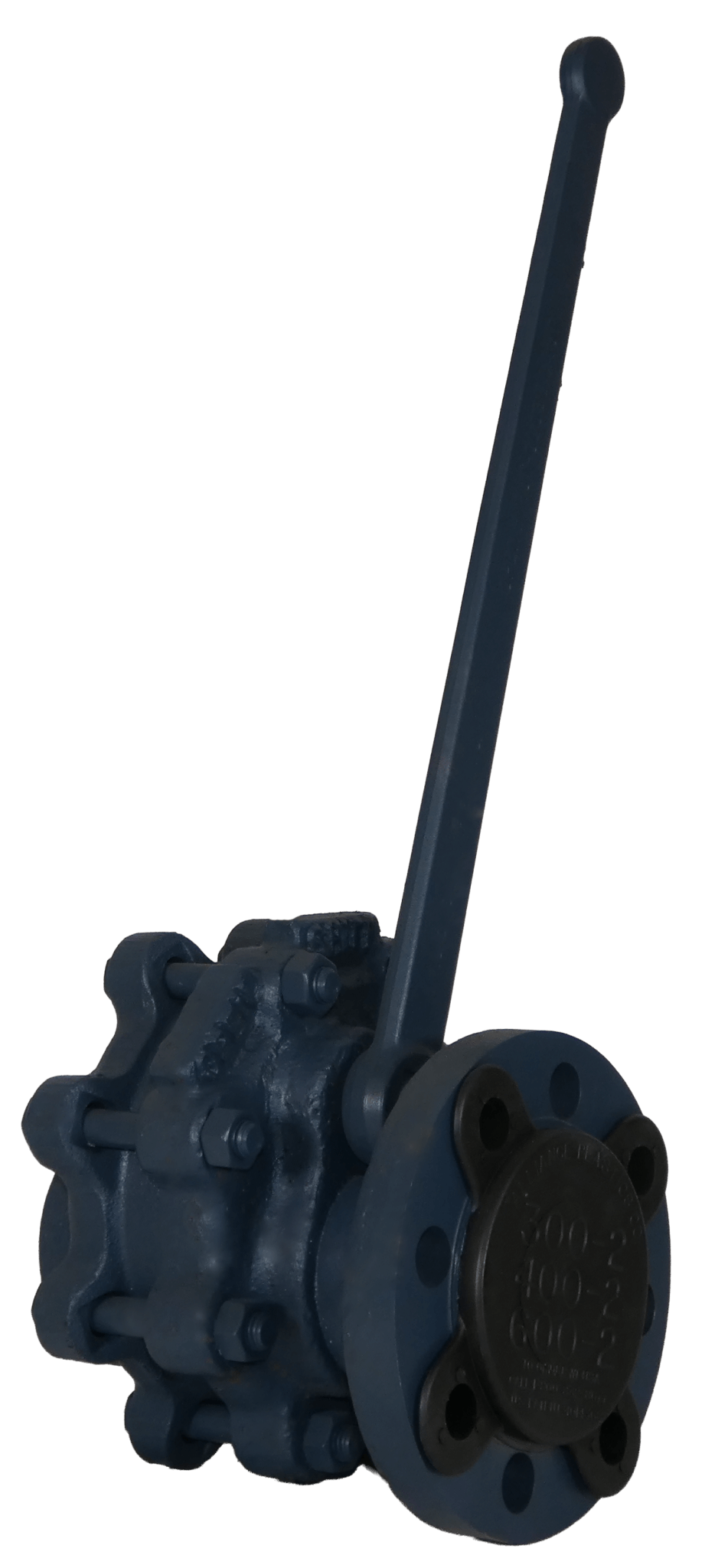

4000-1A-2 - Angle-2

Duplex Figure # 4000/1A, Class 250, Cast Iron, Threaded Inlet/250 lb ANSI Flanged, Lever Operated

SKU: 4000/1A-2.00 Category:

Shipping timeline: In stock, typically ships next business day
Add to Quote Cart

Description

Duplex High-performance boiler blowdown valves designed for controlled, reliable discharge in severe steam service. Duplex configurations provide flexible installation options, combining quick and slow opening functions to optimize safety, efficiency, and system protection. Built with rugged bodies, precision-machined internals, and positive lever actuation for long service life, reduced maintenance, and dependable operation in high-temperature, high-cycle environments.

Product Specs

Weight 35 lbs
Series 4000
Pipe Size (in.) 2
Valve Types Duplex
ANSI Valve Class (lbs.) 250
Max Blow-Off Pressure ASME Code (psi) 200
Face to Face (in.) 13.5
