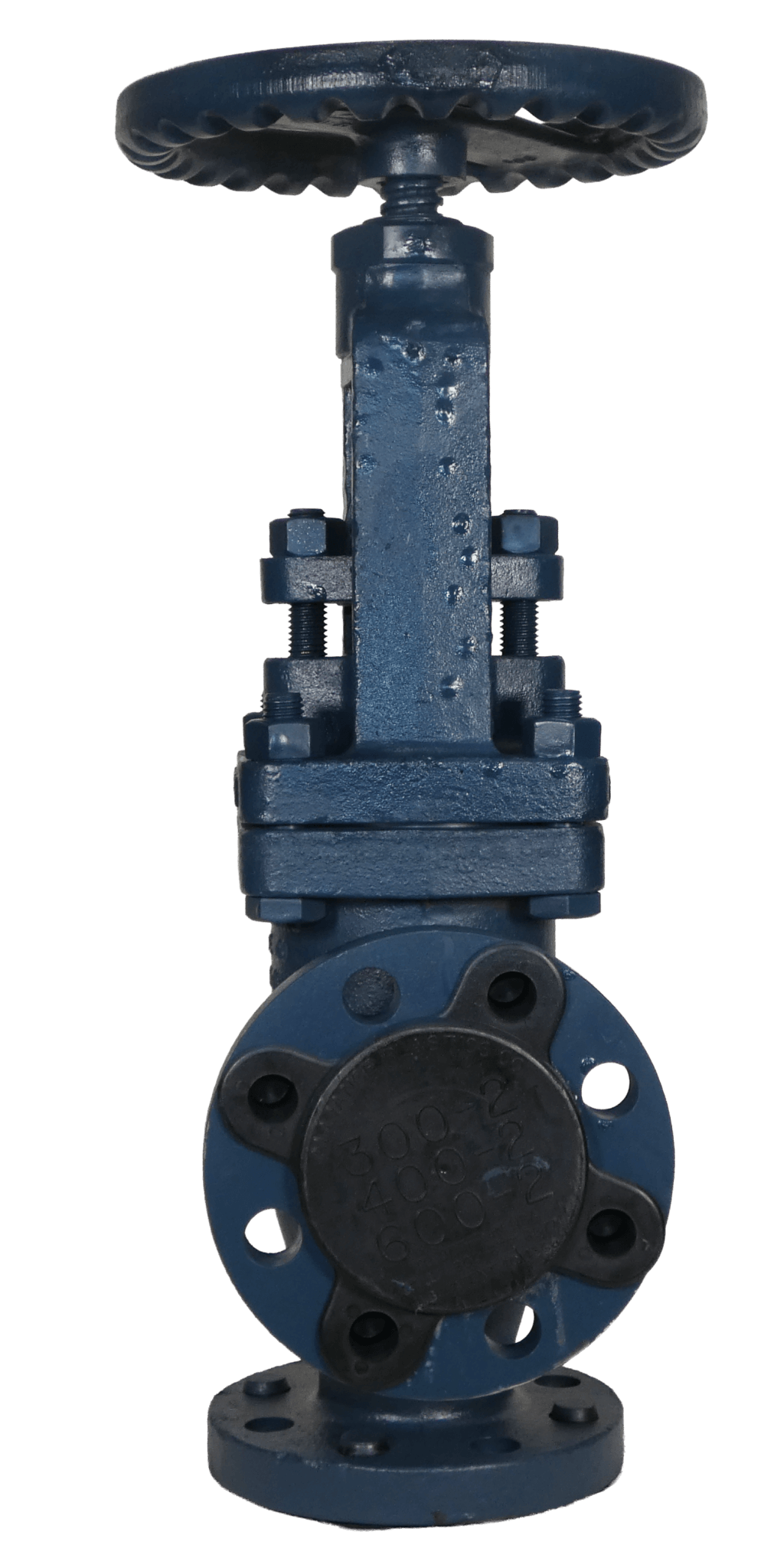

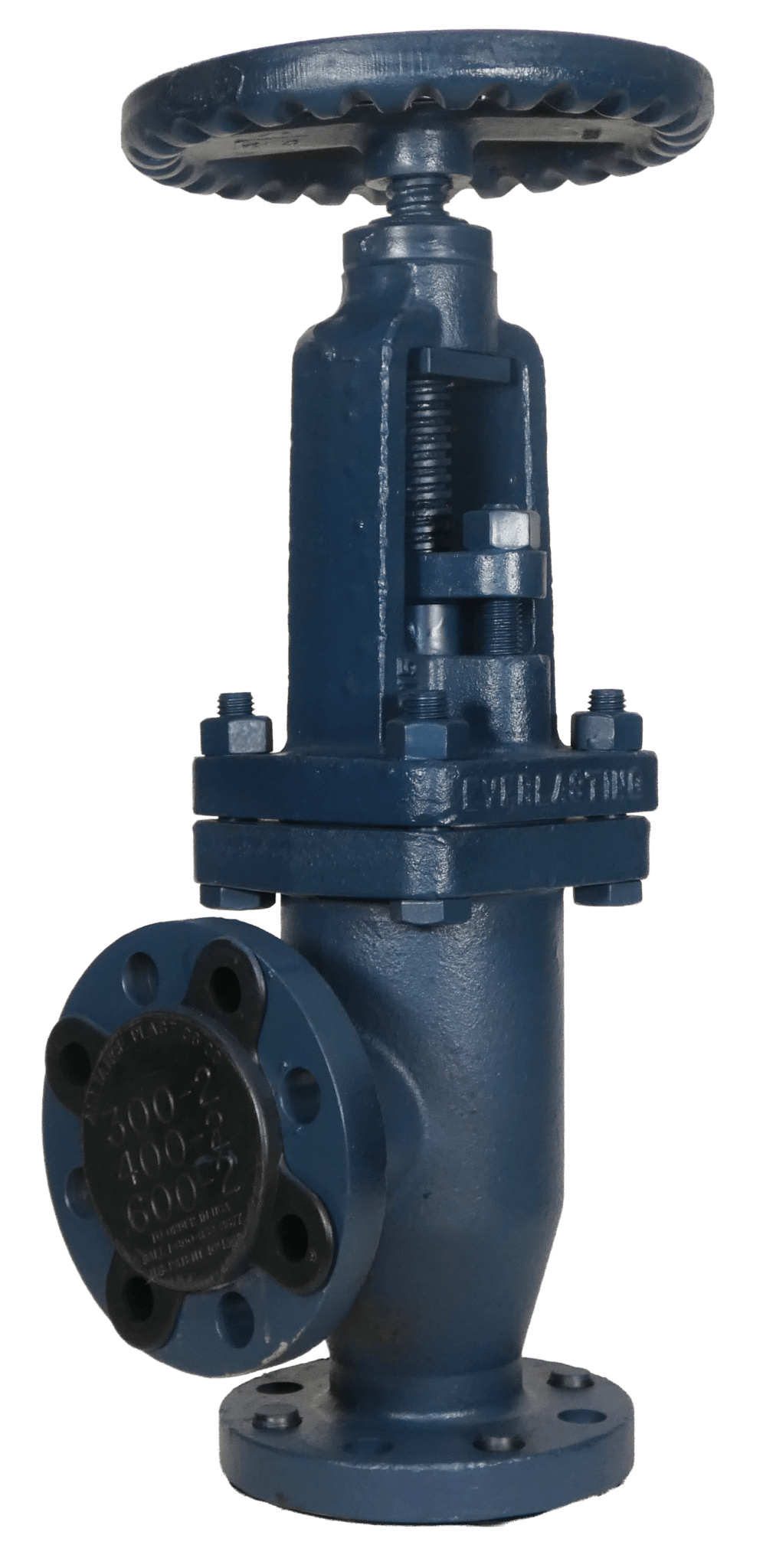

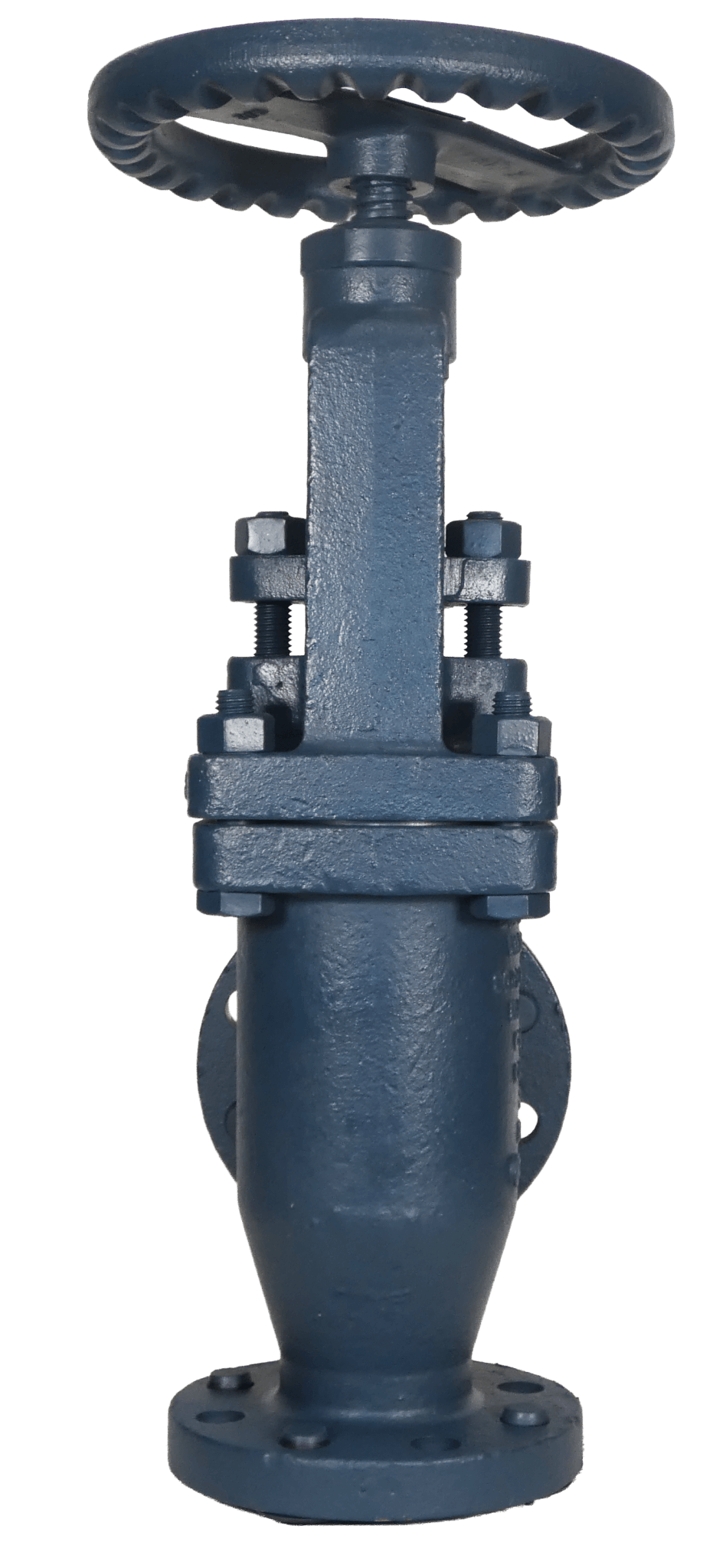

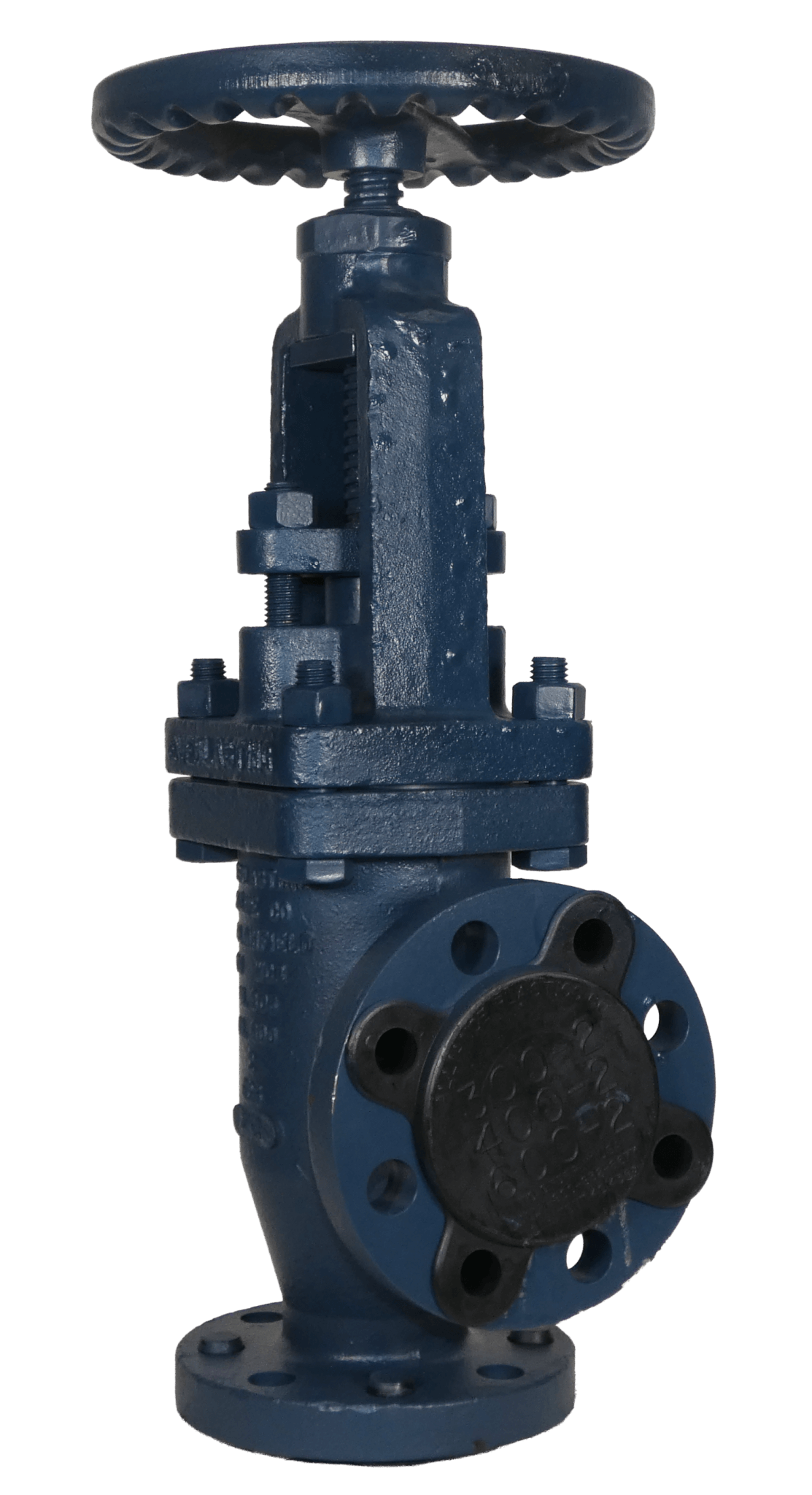

Slow Opening Valve Figure # B6661, Angle, Steel Body, Flanged
Shipping timeline: In stock, typically ships next business day
Description
Figure B6661 Series Slow Opening Boiler Blowdown Valves are a controlled-opening valve designed for safe, gradual discharge in steam service. Features a durable carbon steel body, flanged connection, and straight-lever operator for precise, smooth actuation. Engineered for high-temperature, high-cycle applications to minimize thermal shock, extend service life, and reduce maintenance costs
Product Specs
| Weight | 86 lbs |
|---|---|
| Series | 6000 |
| Pipe Size (in.) | 2 |
| Valve Types | Slow opening |
| ANSI Valve Class (lbs.) | 300 |
| Max Blow-Off Pressure ASME Code (psi) | 490 |
| Face to Face (in.) | 5 |
