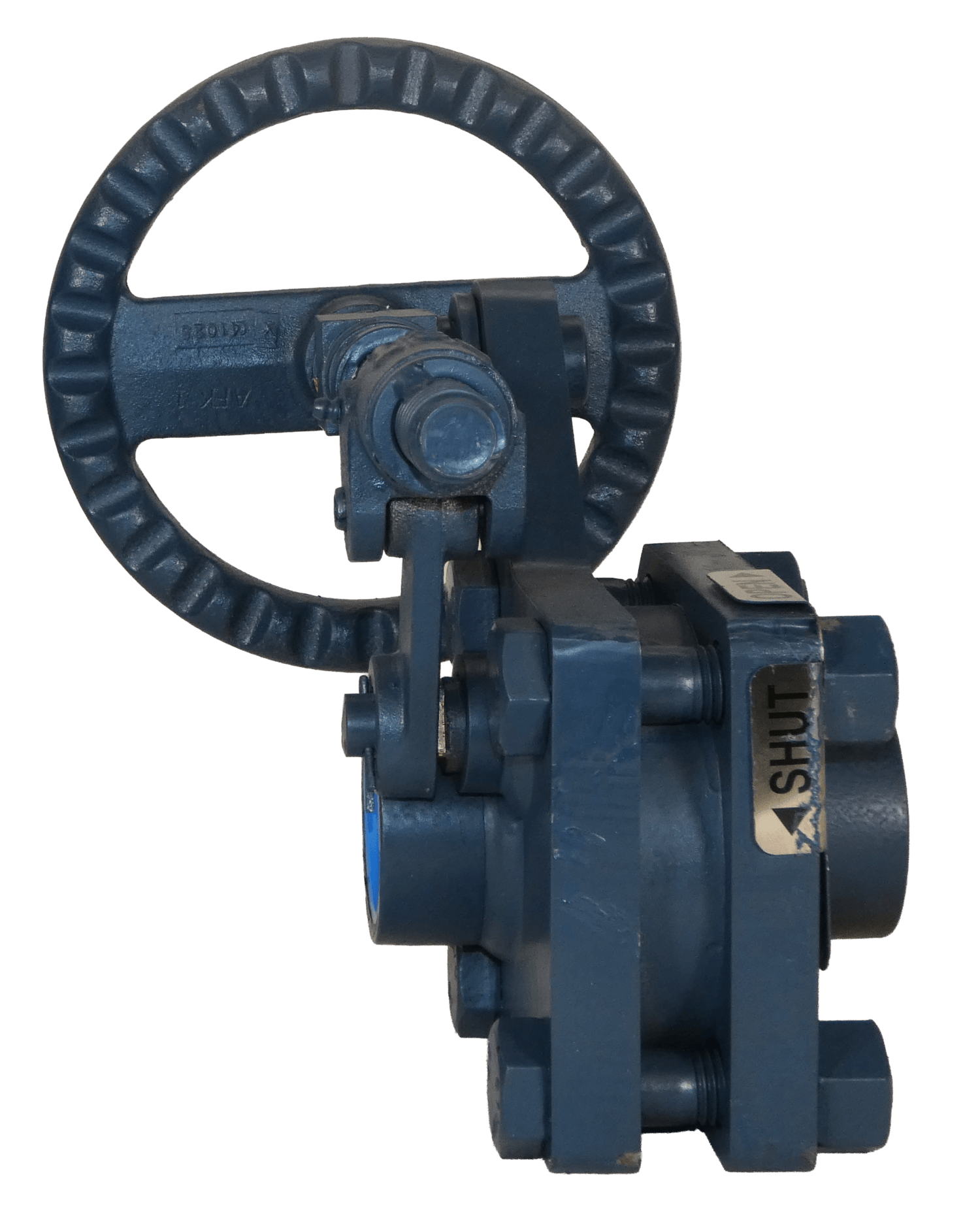

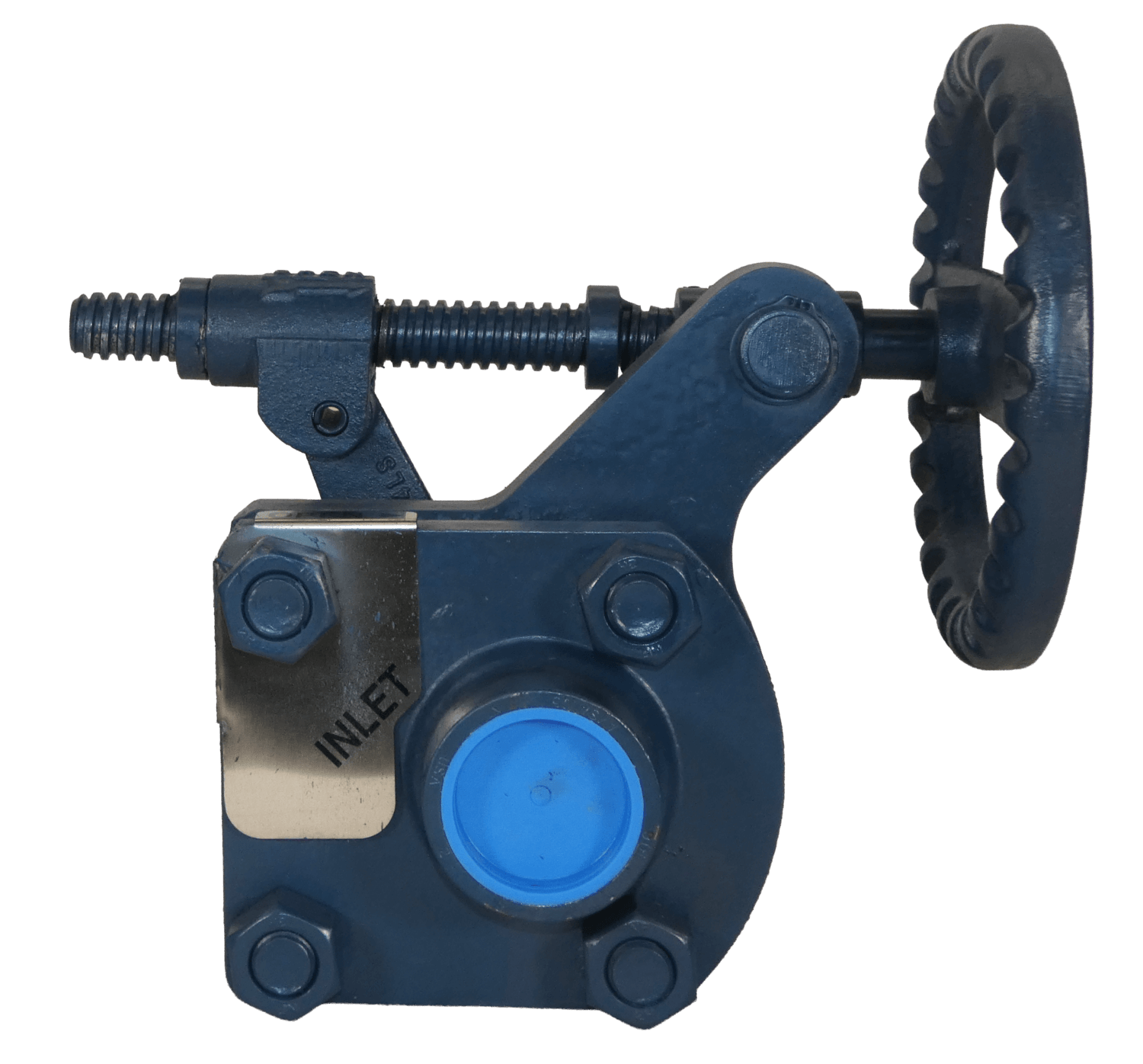

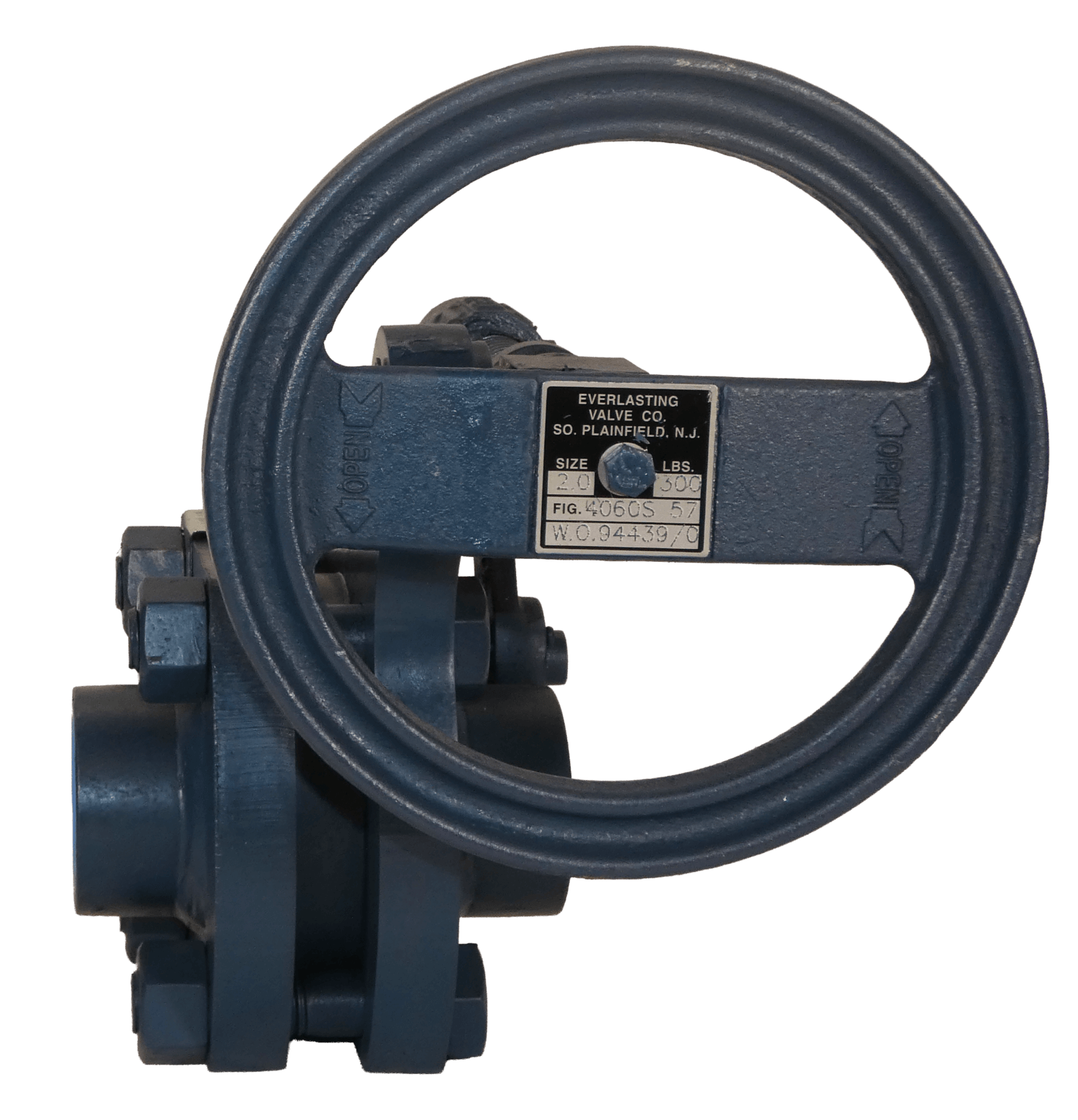

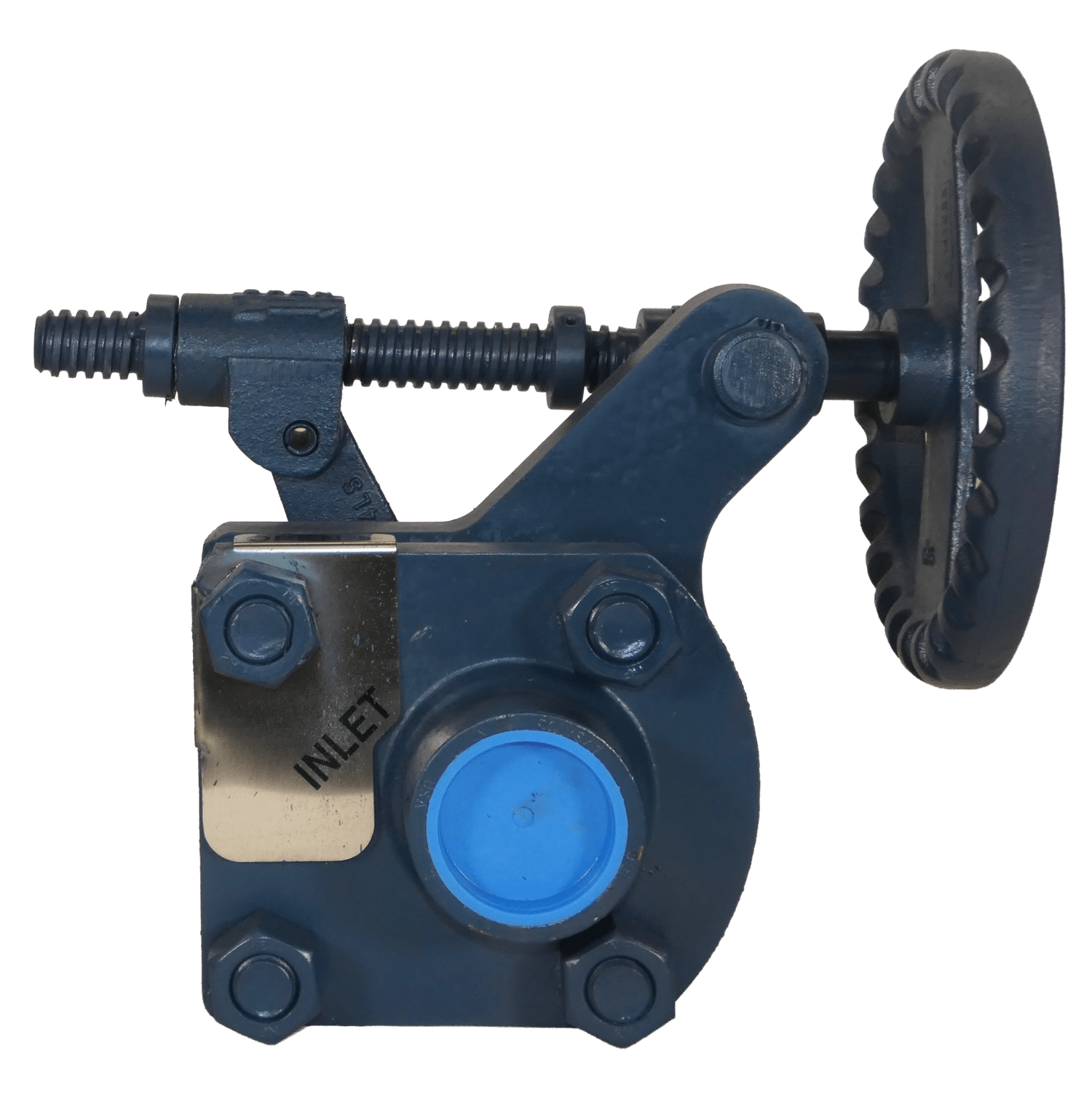

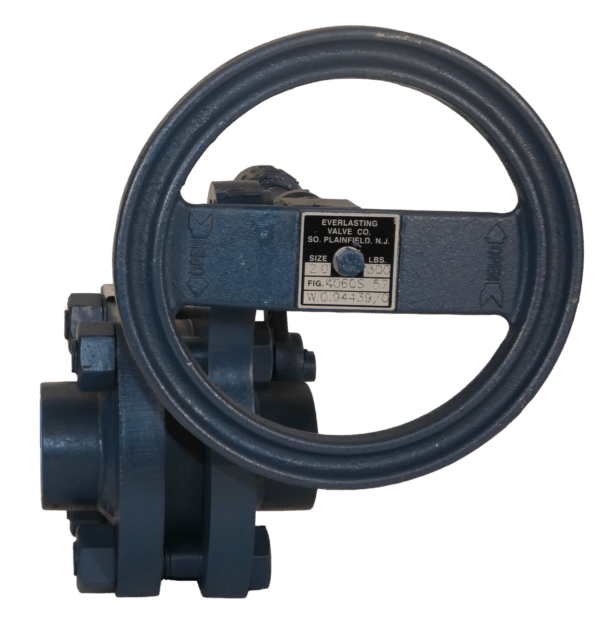

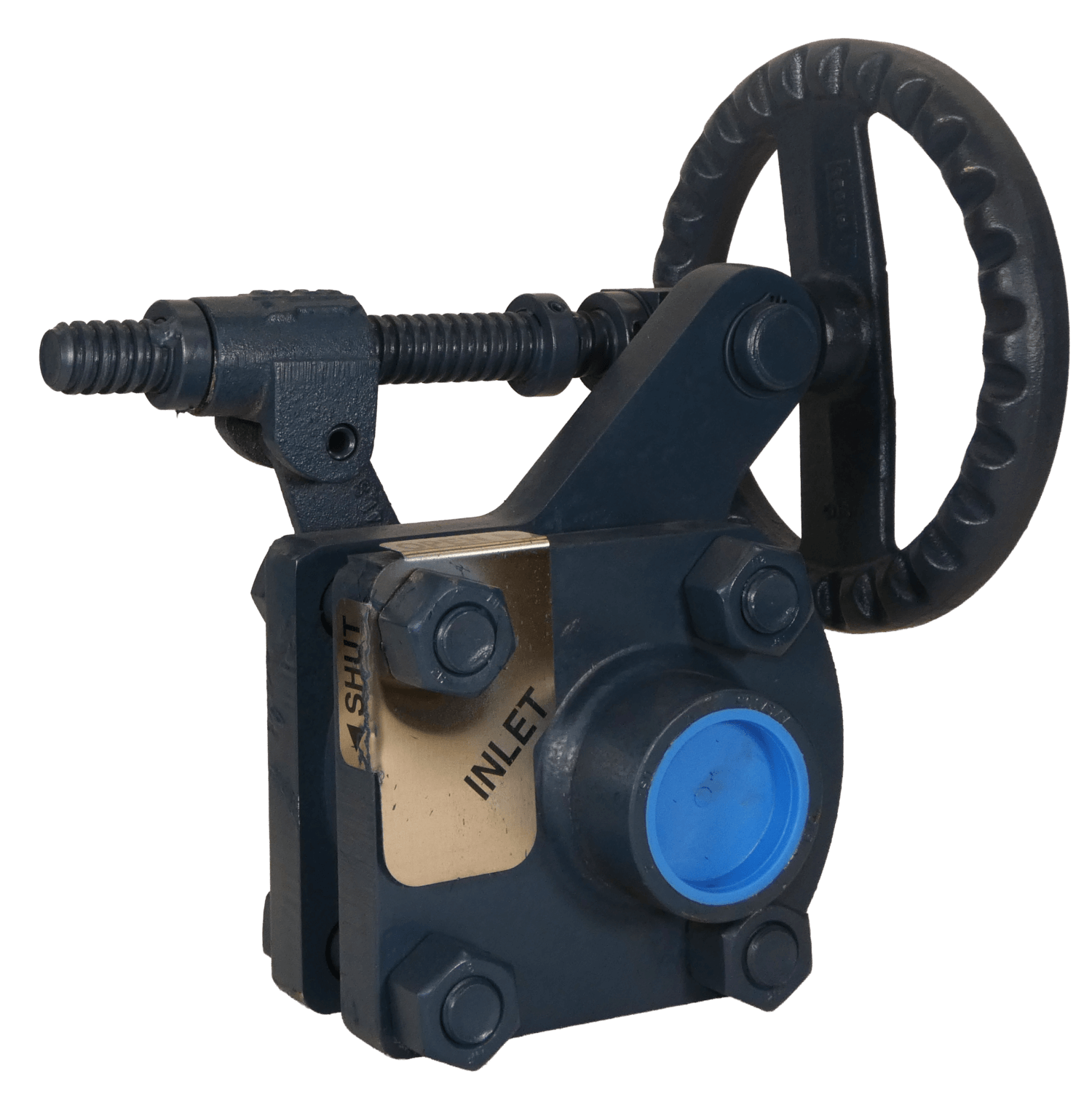

Slow Opening Valve Figure # 4060S(57), Steel Body, Threaded End, Wheel Operated
Shipping timeline: In stock, typically ships next business day
Description
Figure 4060S(57) Quick Opening Boiler Blowdown Valve provides rapid-opening boiler blowdown valve engineered to clear sludge and impurities in severe-service steam applications. Features a rugged carbon steel body, threaded-end connections, and straight-lever operator for fast, positive actuation. Built for high-temperature, high-cycle service to deliver long life, reduced maintenance, and reliable performance.
Product Specs
| Weight | 48 lbs |
|---|---|
| Series | 4000 |
| Pipe Size (in.) | 2 |
| Valve Types | Slow opening |
| ANSI Valve Class (lbs.) | 300 |
| Max Blow-Off Pressure ASME Code (psi) | 490 |
| Face to Face (in.) | 6.25 |
