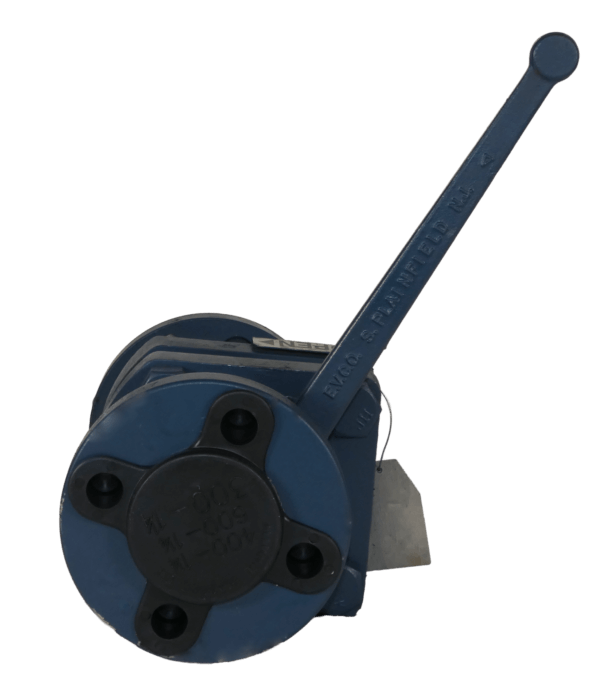

Quick Opening Valve Figure # 4001S(57) Steel Body, Flanged, Straight Lever – 26 lbs
Description
Figure 4001S Quick Opening Boiler Blowdown Valve provides rapid-opening boiler blowdown valve engineered to clear sludge and impurities in severe-service steam applications. Features a rugged iron body, flanged connections, and straight-lever operator for fast, positive actuation. Built for high-temperature, high-cycle service to deliver long life, reduced maintenance, and reliable performance.
Product Specs
| Weight | 26 lbs |
|---|---|
| Series | 4000 |
| Pipe Size (in.) | 1.25 |
| Valve Types | Quick opening |
| ANSI Valve Class (lbs.) | 300 |
| Max Blow-Off Pressure ASME Code (psi) | 490 |
| Face to Face (in.) | 7.625 |
