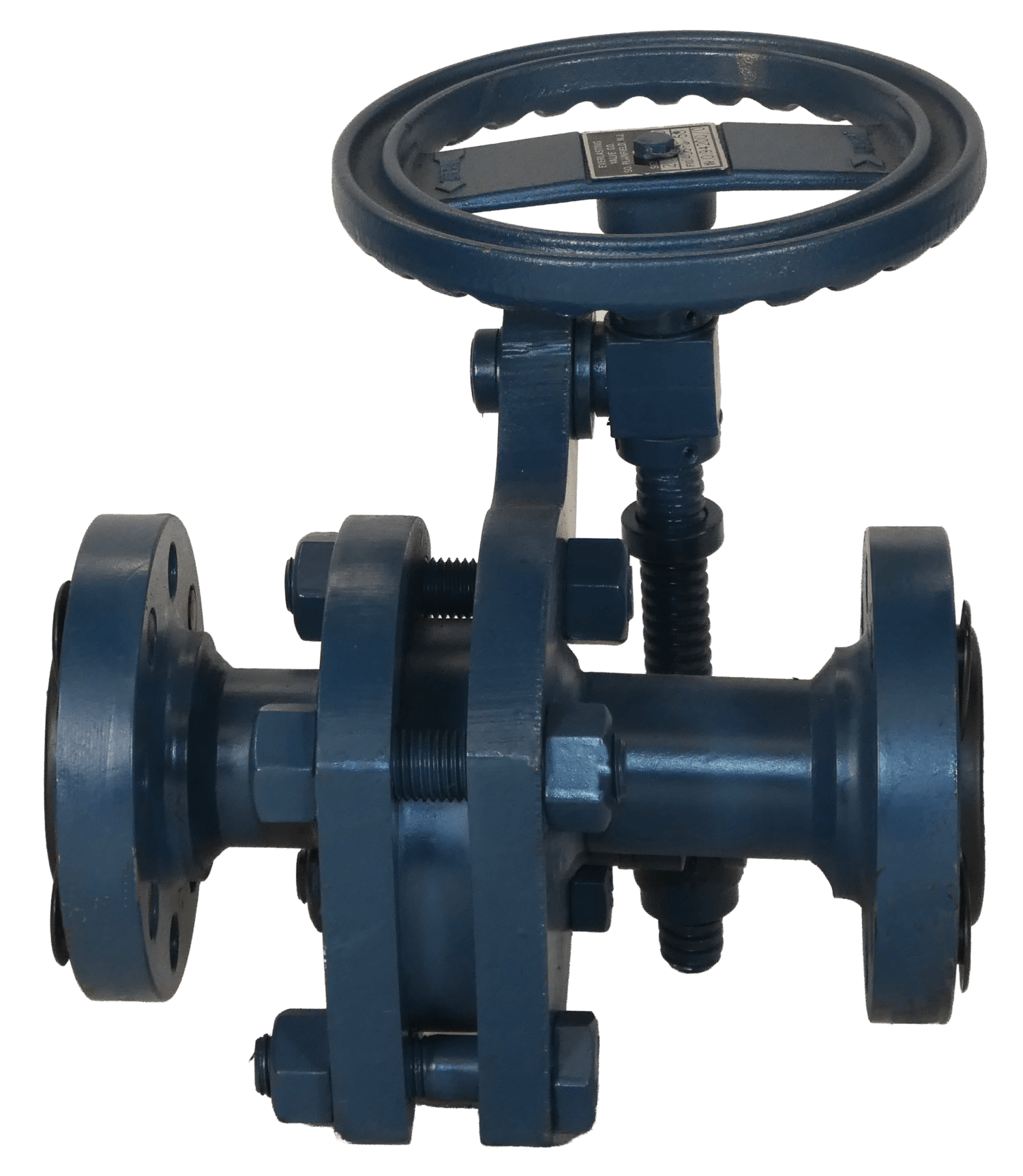

Slow Opening Valve Figure # 4061S(58), Steel Body, Flanged, Wheel Operated

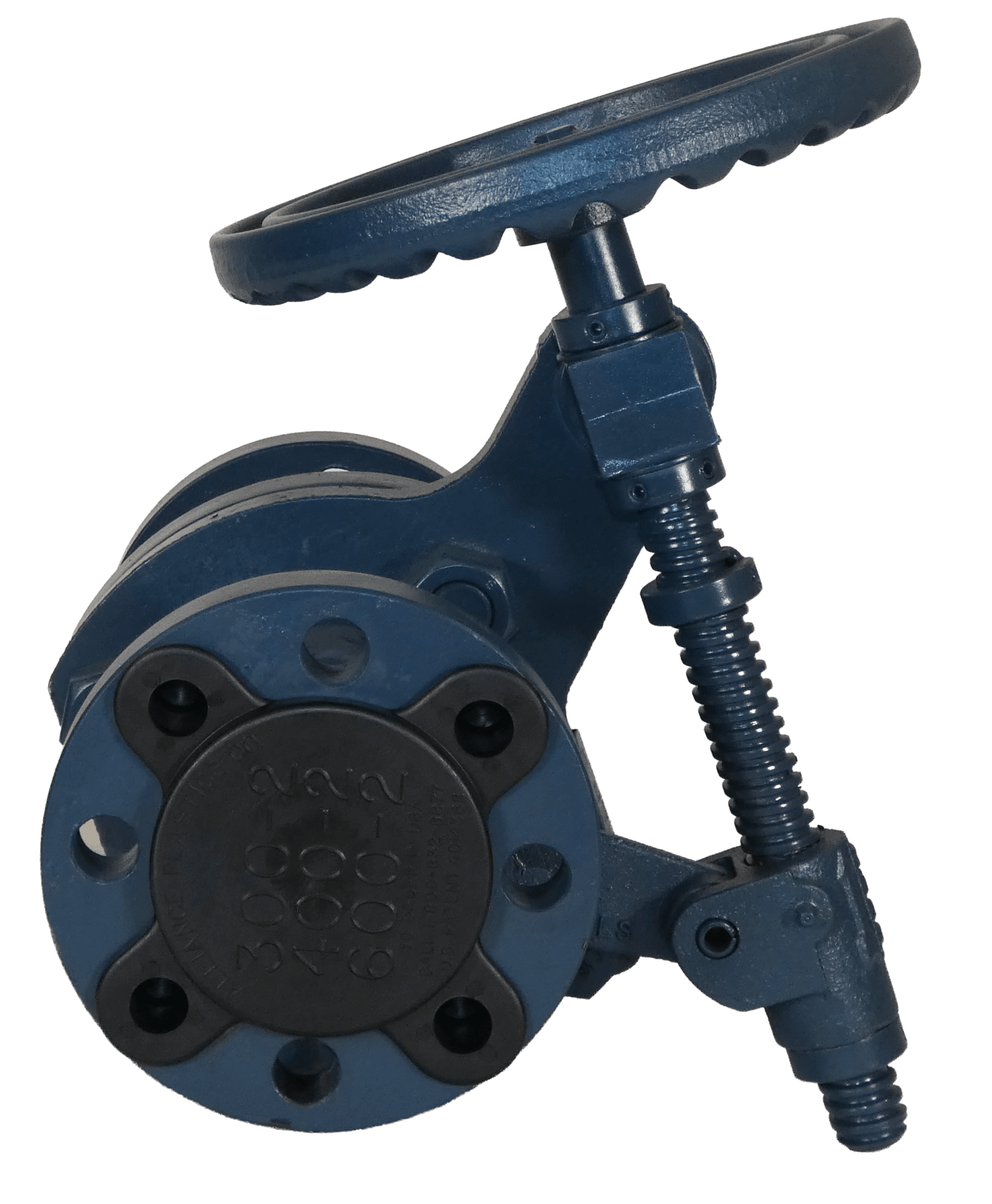

Slow Opening Valve Figure # 4061S(58), Steel Body, Flanged, Wheel Operated - Image 2

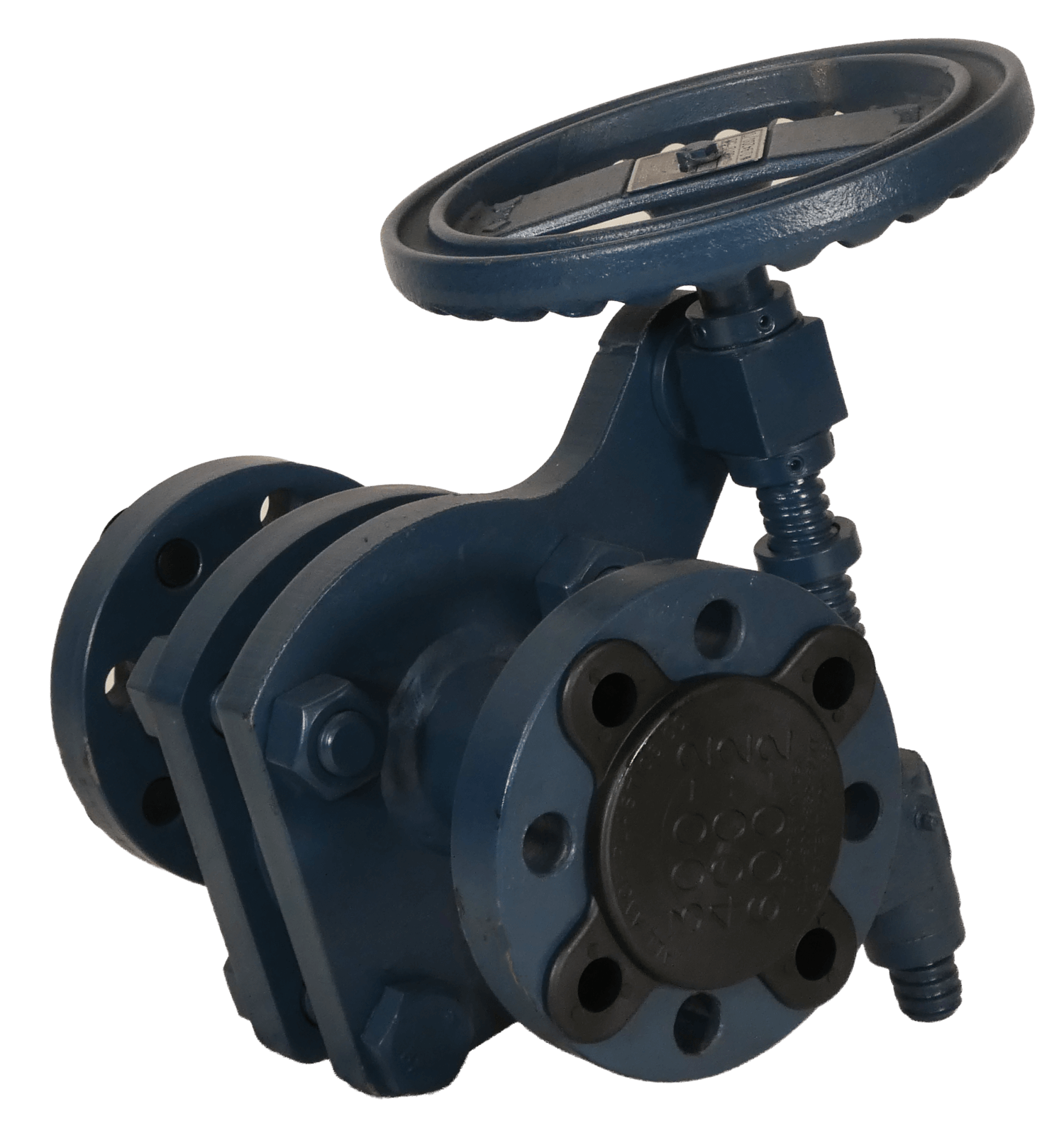

Slow Opening Valve Figure # 4061S(58), Steel Body, Flanged, Wheel Operated - Image 3

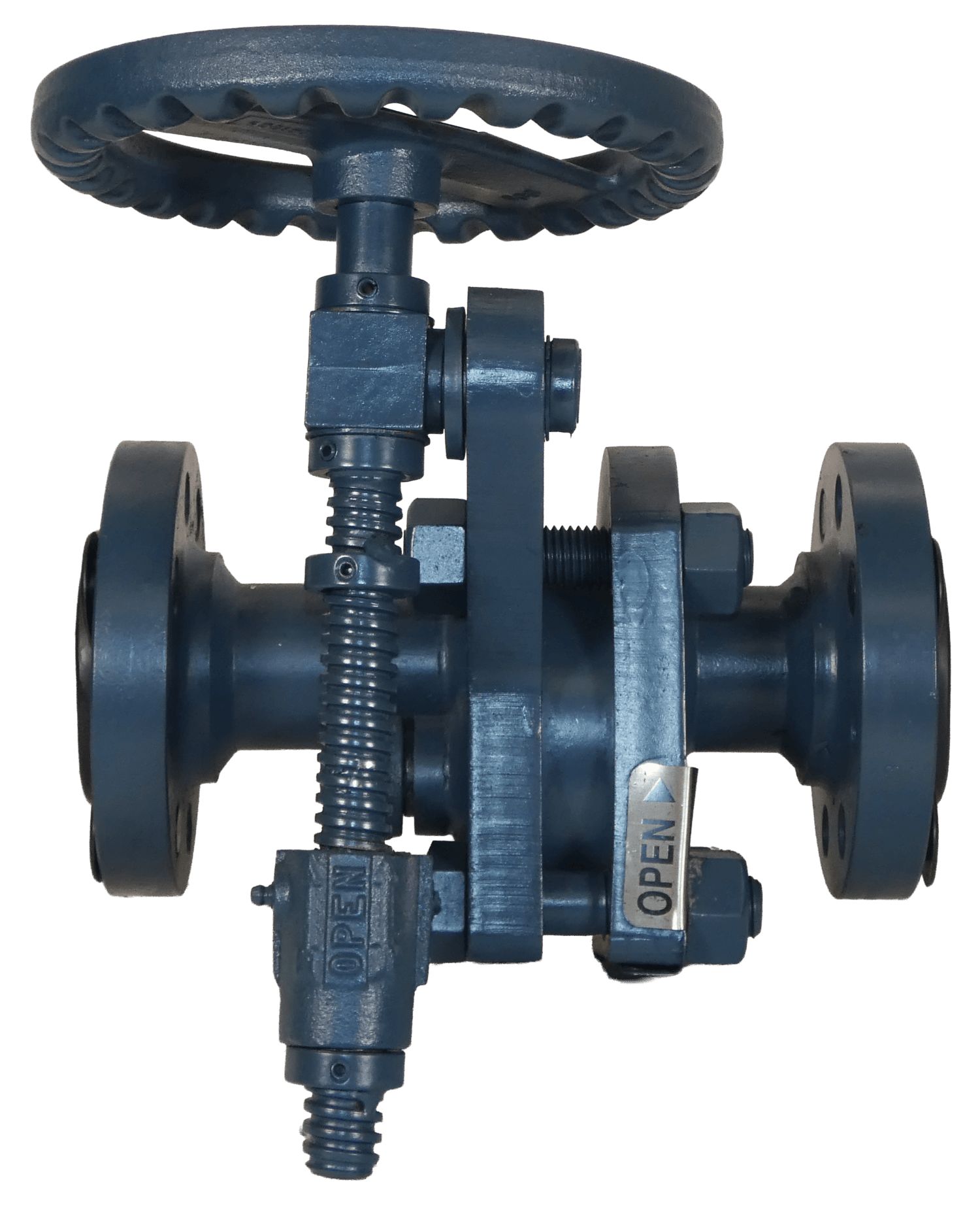

Slow Opening Valve Figure # 4061S(58), Steel Body, Flanged, Wheel Operated - Image 4

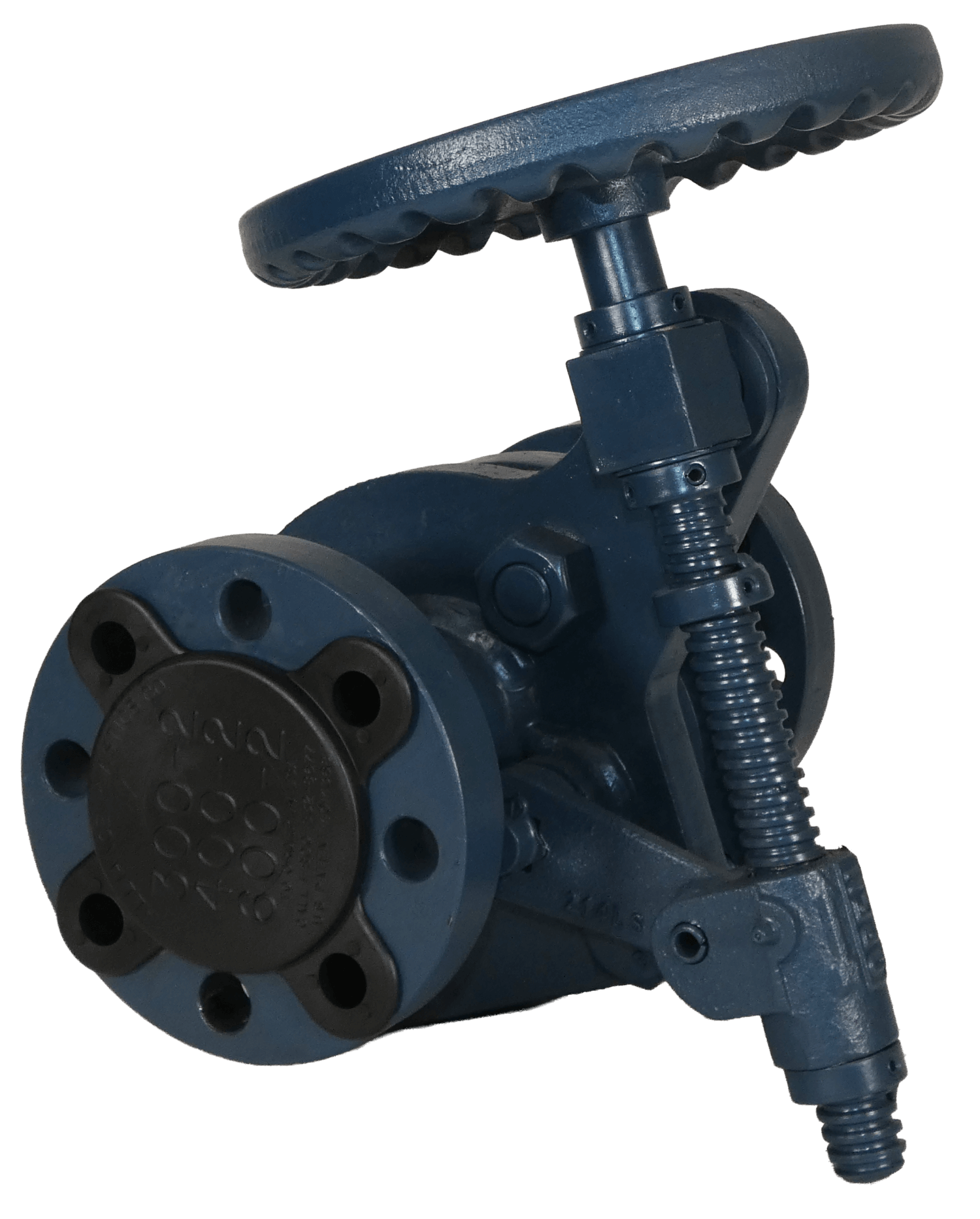

Slow Opening Valve Figure # 4061S(58), Steel Body, Flanged, Wheel Operated - Image 5

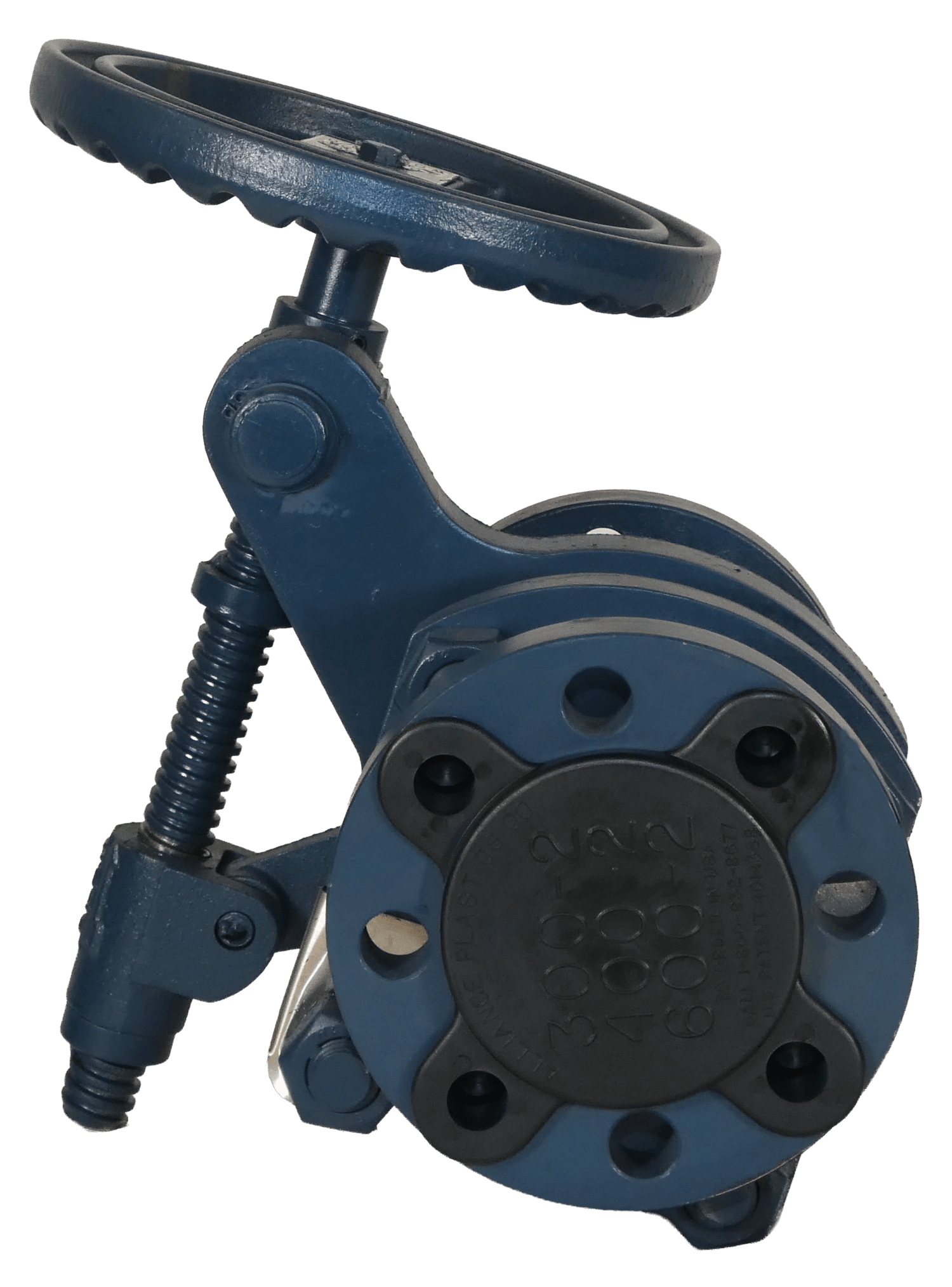

Slow Opening Valve Figure # 4061S(58), Steel Body, Flanged, Wheel Operated - Image 6

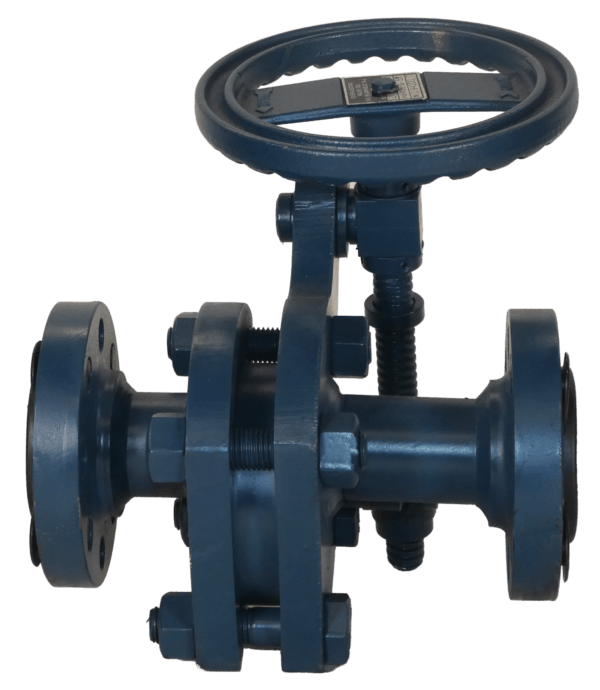

Slow Opening Valve Figure # 4061S(58), Steel Body, Flanged, Wheel Operated

SKU: 4061S(58)-2.00 Category:

Shipping timeline: In stock, typically ships next business day
Add to Quote Cart

Description

Figure 4060S(58) Series Slow Opening Boiler Blowdown Valves are a controlled-opening valve designed for safe, gradual discharge in steam service. Features a durable carbon steel body, flanged connection, and straight-lever operator for precise, smooth actuation. Engineered for high-temperature, high-cycle applications to minimize thermal shock, extend service life, and reduce maintenance costs

Product Specs

Weight 57 lbs
Series 4000
Pipe Size (in.) 2
Valve Types Slow opening
ANSI Valve Class (lbs.) 600
Max Blow-Off Pressure ASME Code (psi) 935
Face to Face (in.) 11.875
