Pneumatic Conveying Valves: All You Need To Know!

In the world of industrial material handling, pneumatic conveying systems play a crucial role in transporting powders, granules, and bulk solids efficiently through pipelines. At the heart of these systems are pneumatic conveying valves—components that control material flow, maintain system pressure, and ensure operational reliability. This comprehensive guide explores everything you need to know about these essential industrial components.

What Are Pneumatic Conveying Valves?

Pneumatic conveying valves are specialized flow control devices designed to manage the movement of dry bulk materials through pneumatic conveying systems. These valves regulate the flow of materials, prevent backflow, maintain pressure differentials, and enable the loading and unloading of materials at various points throughout the conveying process.

Unlike standard valves used in liquid applications, pneumatic conveying valves must withstand the unique challenges posed by dry materials, including abrasion, material buildup, and pressure fluctuations that can occur during the conveying process.

Types of Pneumatic Conveying Valves

Rotary Valves

Rotary valves (also known as rotary airlocks) are among the most common valve types in pneumatic conveying. They feature a rotor with vanes or pockets that rotate within a housing, creating a continuous metering function while maintaining an air seal between the conveying line and the material inlet. These valves are ideal for:

• Maintaining pressure differentials between system components
• Providing consistent material feed rates
• Creating airlocks in the conveying system

Diverter Valves

Diverter valves direct material flow to different destinations within a pneumatic conveying system. They allow operators to route materials to various processing points or storage locations without interrupting the conveying process. Key advantages include:

• Flexible material routing capabilities
• Reduced downtime during product changeovers
• Improved process efficiency

Butterfly Valves

Butterfly valves utilize a disk-shaped closure mechanism that rotates to control flow. In pneumatic conveying applications, heavy-duty butterfly valves with specialized seals are employed to handle abrasive materials while providing tight shutoff when needed.

Knife Gate Valves

Knife gate valves feature a sharp-edged gate that cuts through material buildup as it closes. These valves excel in applications involving sticky or cohesive materials that might cause other valve types to jam or bind.

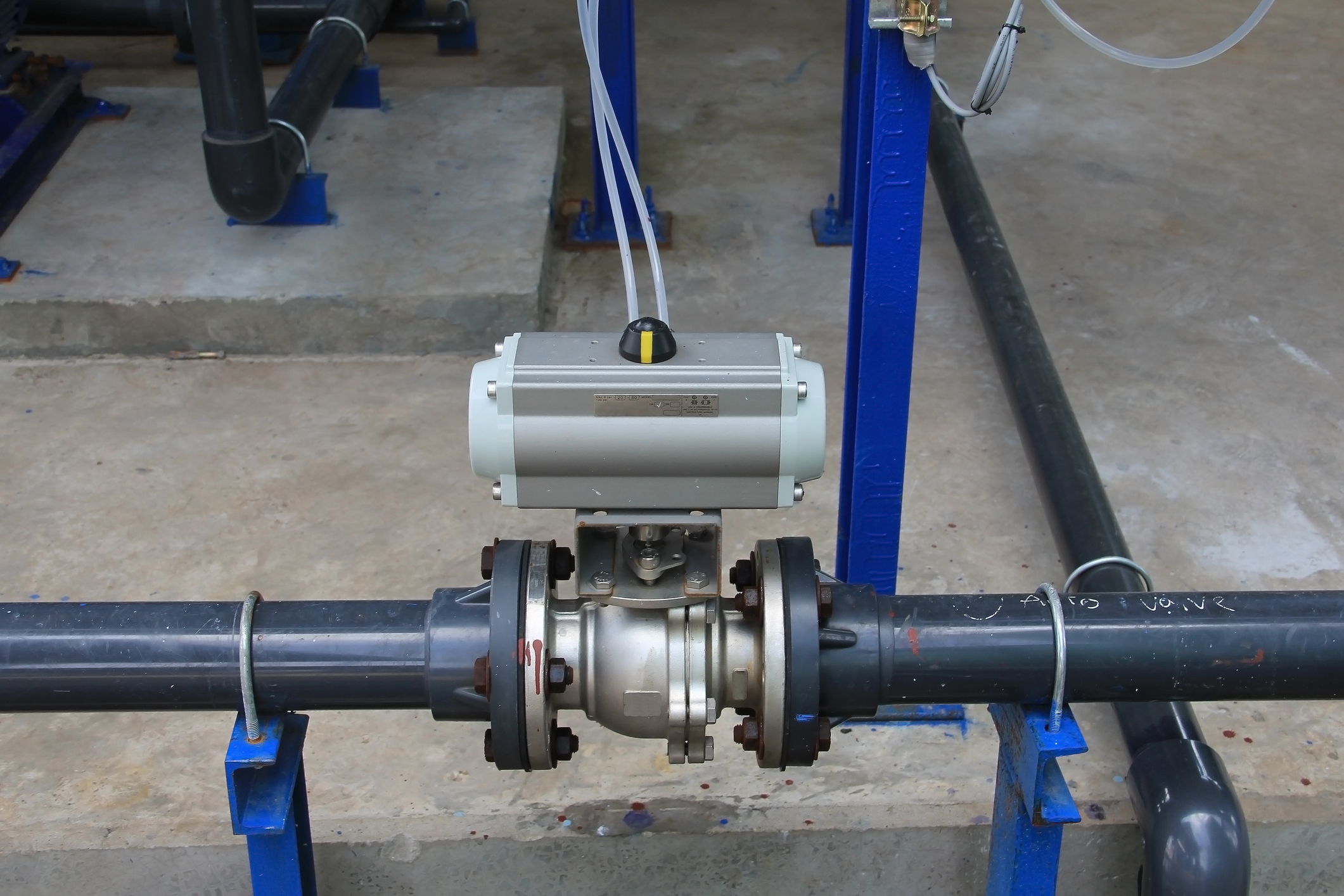

Ball Valves

Industrial ball valves used in pneumatic conveying applications typically feature a reinforced full-bore design that minimizes pressure drop and allows unimpeded material flow when open. Their quarter-turn operation makes them efficient for quick shutoff operations.

Critical Factors in Valve Selection

Selecting the right pneumatic conveying valve requires careful consideration of several factors:

Material Characteristics

The properties of the conveyed material significantly impact valve selection:

• Abrasiveness: Highly abrasive materials require valves with hardened components or replaceable wear parts
• Particle size and density: Influences the valve’s ability to maintain proper sealing
• Flow characteristics: Sticky or cohesive materials demand valves with features that prevent buildup

System Requirements

System-specific requirements also drive valve selection:

• Pressure rating: Valves must handle the maximum system pressure with an appropriate safety margin
• Temperature compatibility: Must withstand both material and ambient temperature conditions
• Flow capacity: Should accommodate the required material throughput without creating bottlenecks

Maintenance Considerations

Long-term operational costs are heavily influenced by maintenance requirements:

• Accessibility: Easy access for inspection and service reduces downtime
• Wear component replacement: Valves with easily replaceable wear parts minimize maintenance costs
• Cleaning requirements: Some applications require valves that facilitate quick and thorough cleaning

Common Challenges and Solutions

Valve Wear

Abrasive materials can quickly erode standard valve components. Advanced solutions include:

• Hardened steel or specialized alloy construction
• Ceramic or tungsten carbide coatings on wear surfaces
• Replaceable wear liners that extend valve service life

Material Buildup

Sticky or cohesive materials can accumulate within valves, causing operational issues. Effective countermeasures include:

• Self-cleaning valve designs that minimize dead spaces
• Purge systems that clear material from critical valve areas
• Non-stick coatings on internal valve surfaces

Pressure Fluctuations

Pneumatic conveying systems often experience pressure variations that can affect valve performance. Solutions include:

• Pressure-balanced valve designs
• Robust actuation systems sized appropriately for maximum pressure conditions
• Smart control systems that adjust valve operation based on system conditions

Benefits of High-Quality Pneumatic Conveying Valves

Investing in premium pneumatic conveying valves yields significant operational advantages:

• Reduced downtime due to increased reliability and durability
• Lower maintenance costs through extended service intervals
• Improved process control resulting in consistent material handling
• Enhanced safety by maintaining system integrity
• Decreased product loss from improved sealing capabilities

Everlasting Valve’s Advantage

Everlasting Valve’s pneumatic conveying valves are engineered specifically for challenging applications where standard valves fail prematurely. Our self-lapping, rotating disc technology creates a continuously improving seal with use, unlike conventional valves that wear down over time. This unique design provides:

• Extended service life in abrasive applications
• Reduced maintenance requirements
• Improved sealing under challenging conditions
• Lower total cost of ownership

Contact Everlasting Valve today to discuss your project requirements.
