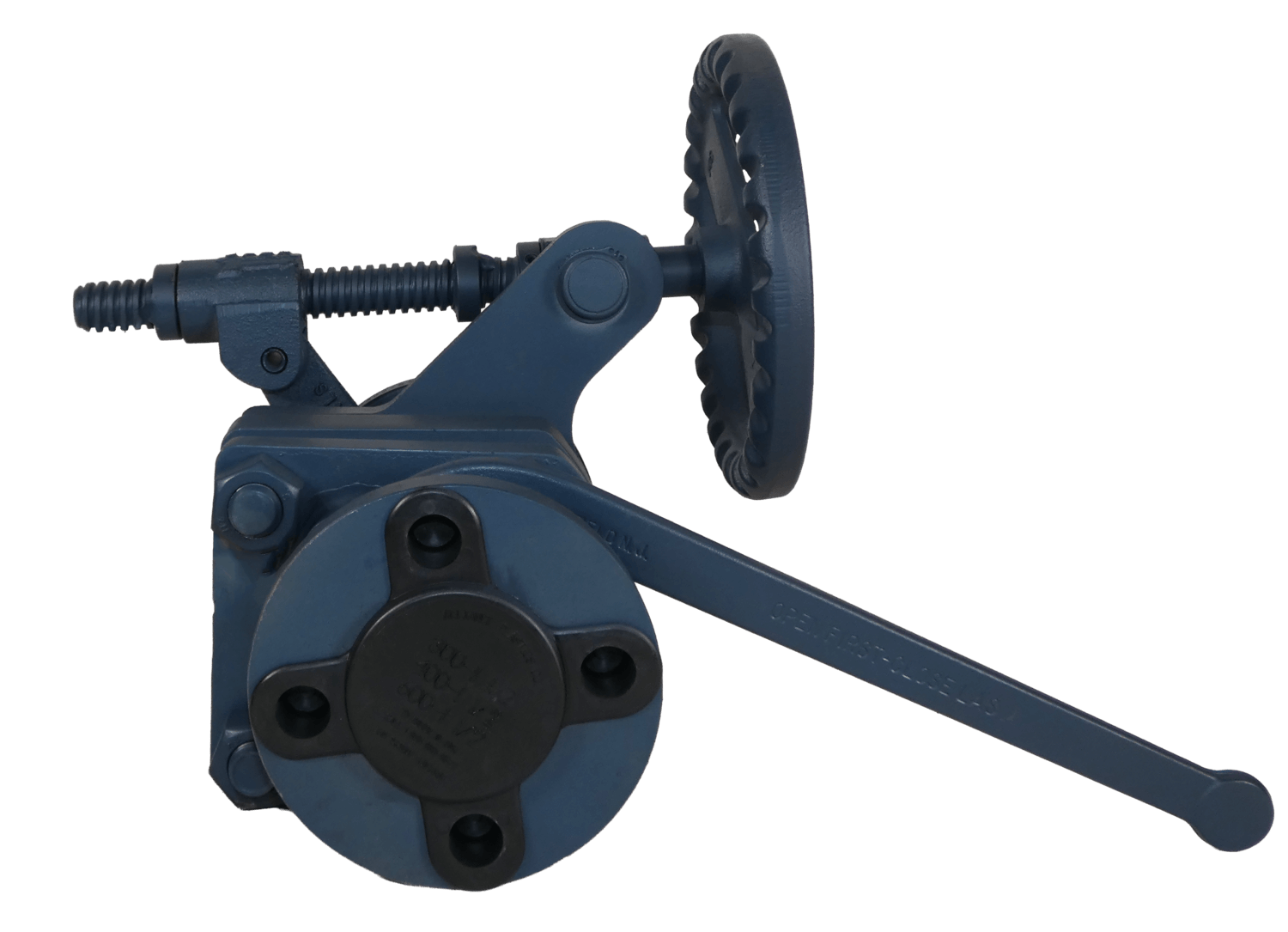

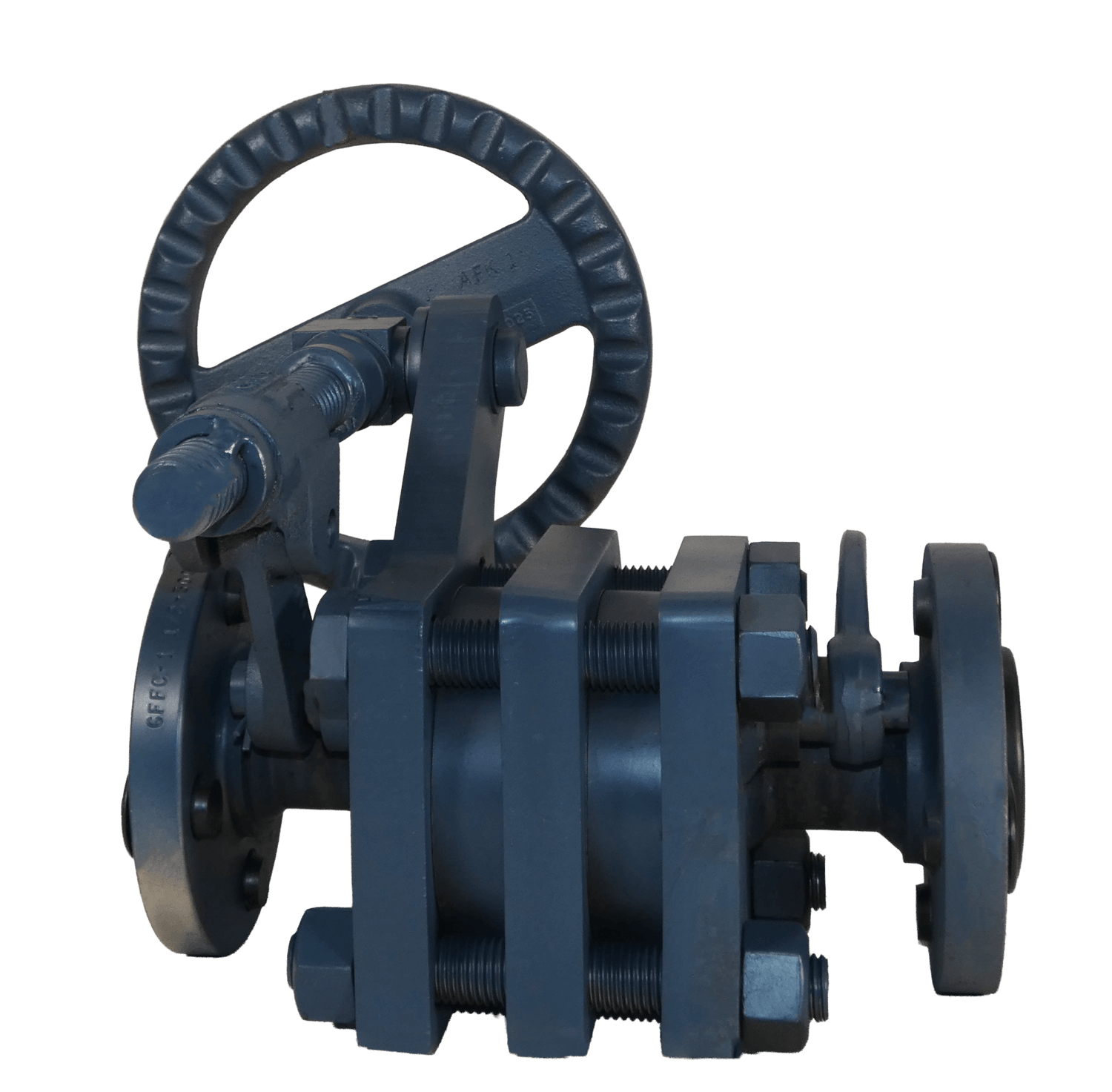

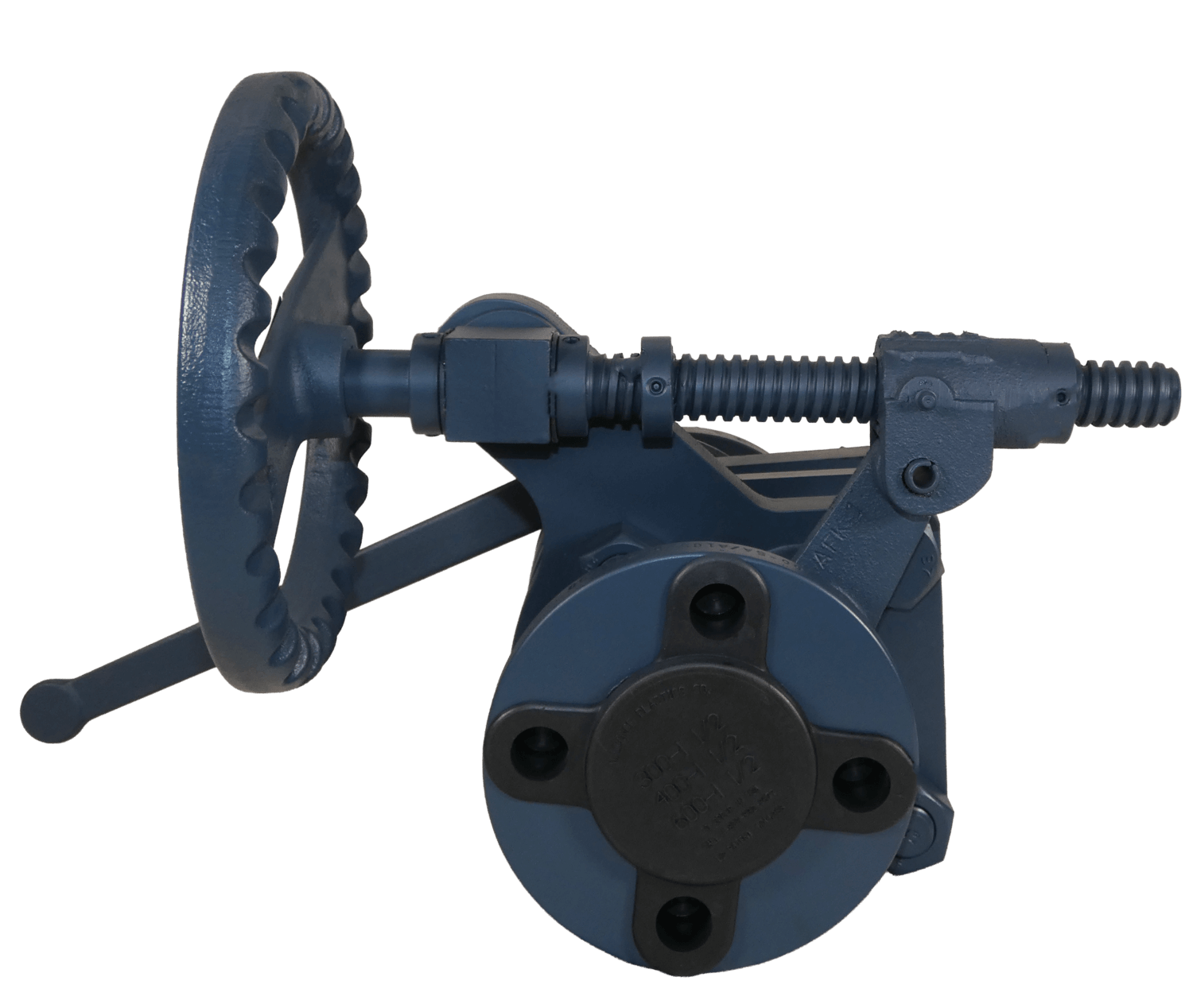

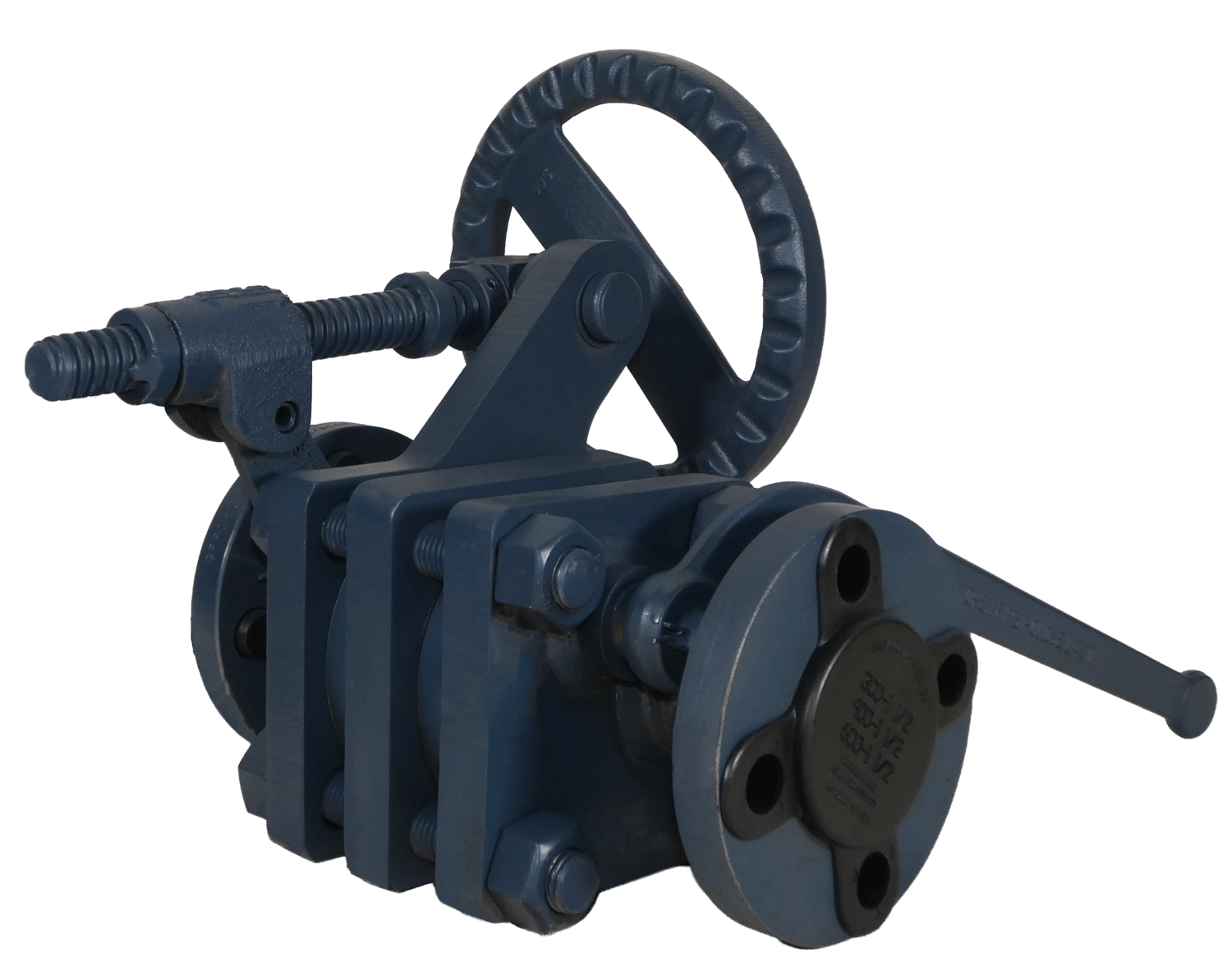

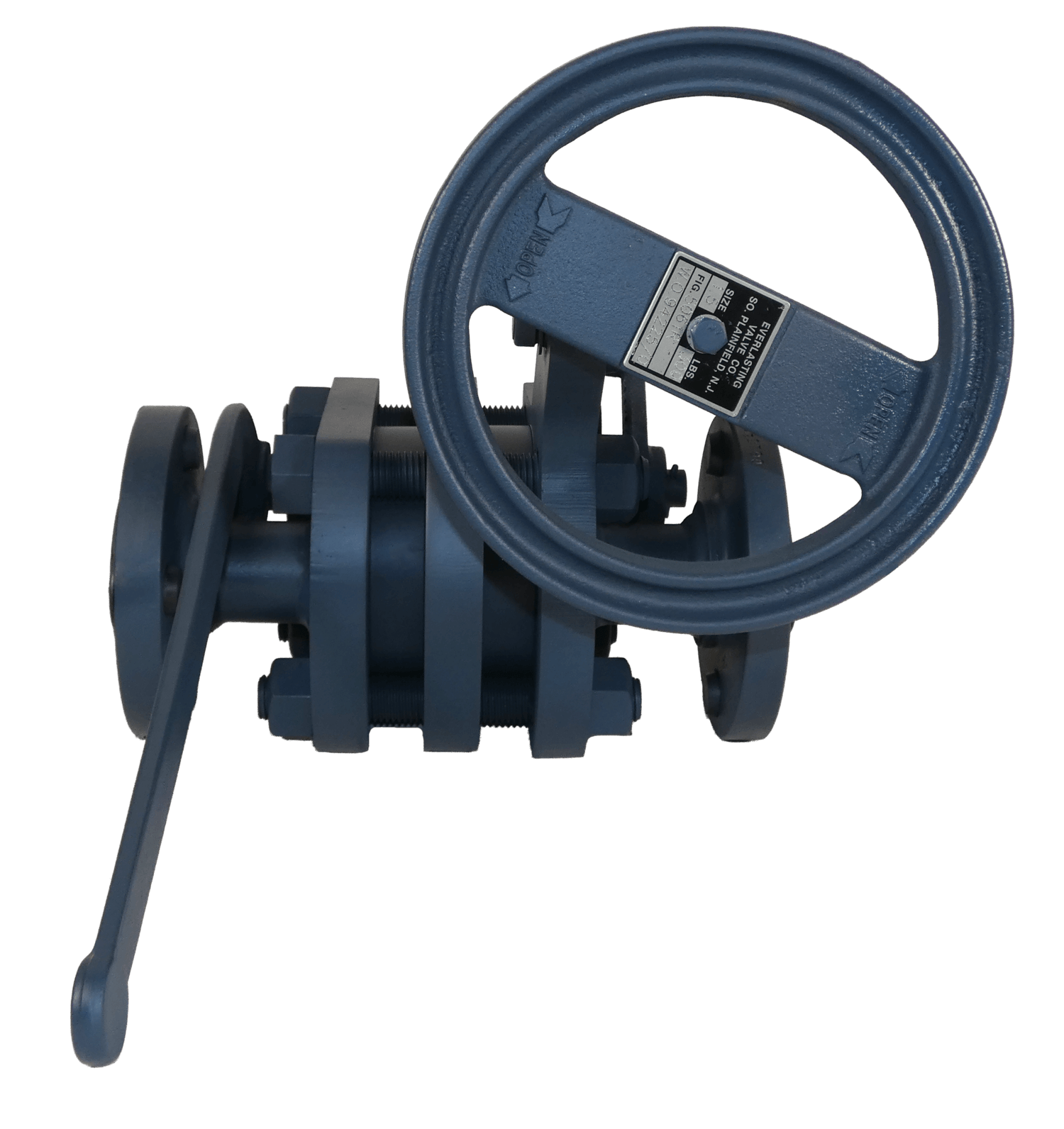

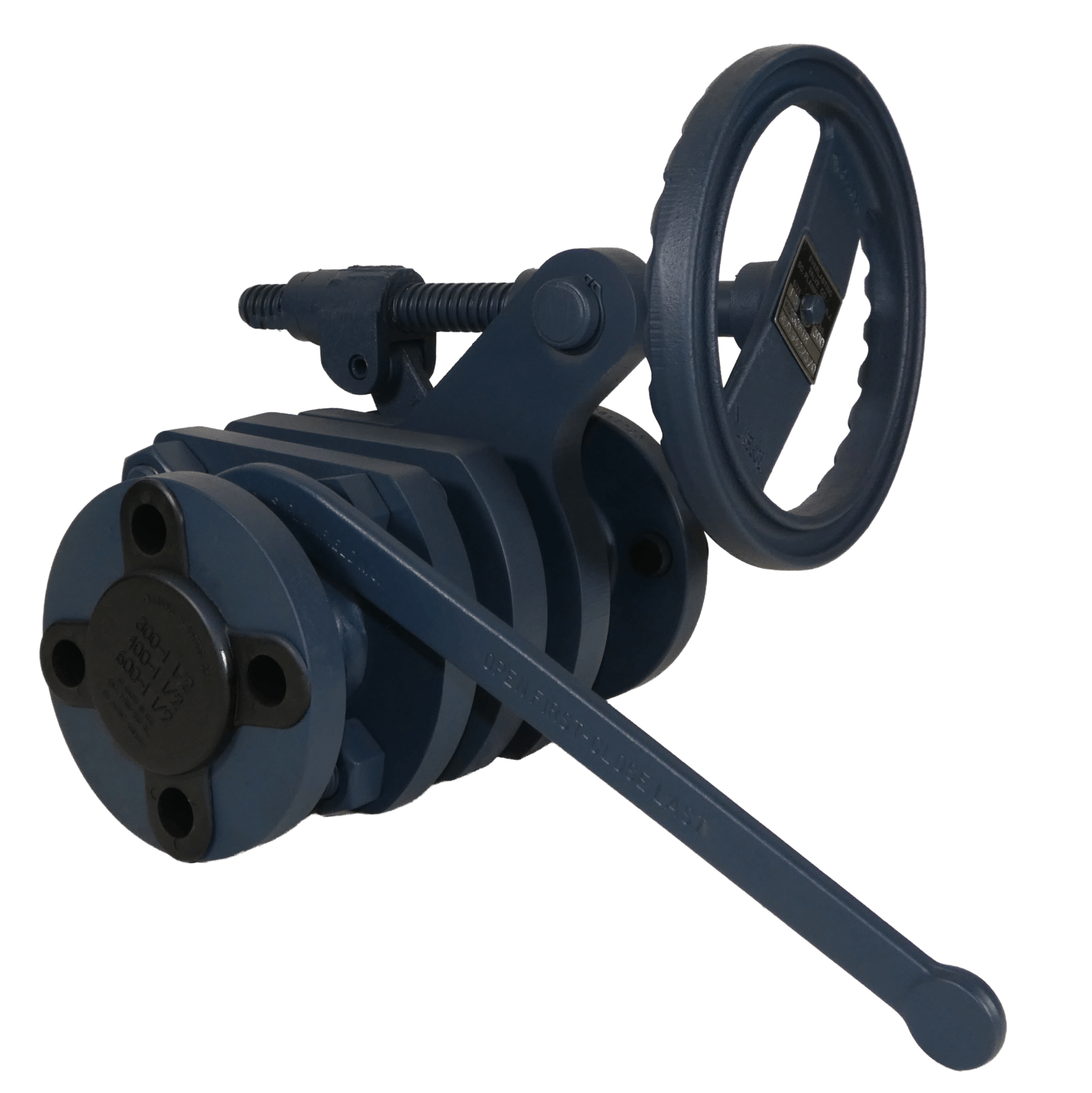

Uni-Tandem Valve, Class 300, Steel, Quick-Slow Function
Shipping timeline: In stock, typically ships next business day
Description
Uni-Tandem High-performance boiler blowdown valves designed for controlled, reliable discharge in severe steam service. Duplex and Uni-Tandem configurations provide flexible installation options, combining quick and slow opening functions to optimize safety, efficiency, and system protection. Built with rugged bodies, precision-machined internals, and positive lever actuation for long service life, reduced maintenance, and dependable operation in high-temperature, high-cycle environments.
Product Specs
| Weight | 70 lbs |
|---|---|
| Series | 5000 |
| Pipe Size (in.) | 1.5 |
| Valve Types | Uni-Tandem |
| ANSI Valve Class (lbs.) | 300 |
| Max Blow-Off Pressure ASME Code (psi) | 490 |
| Face to Face (in.) | 12.5 |
