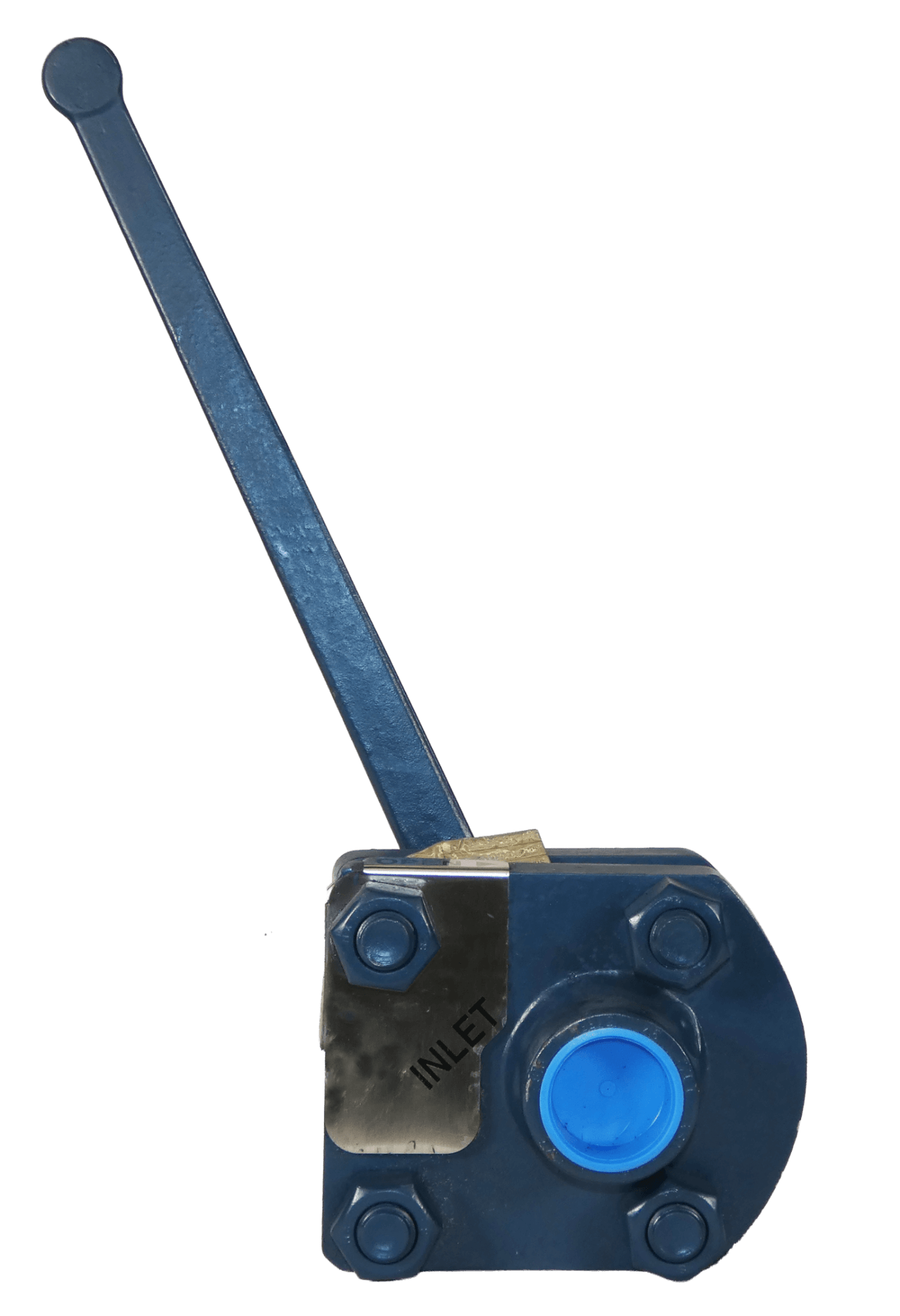

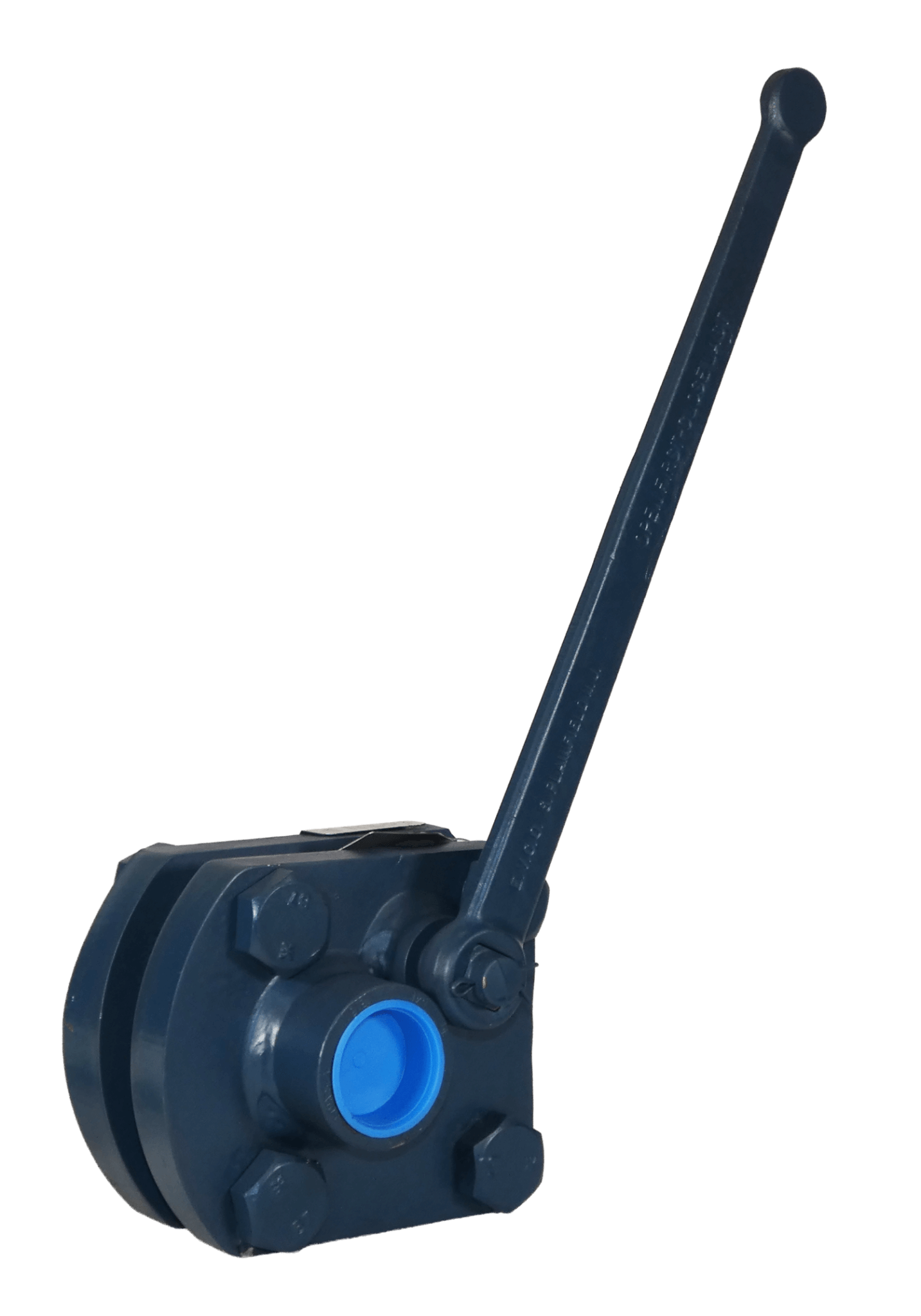

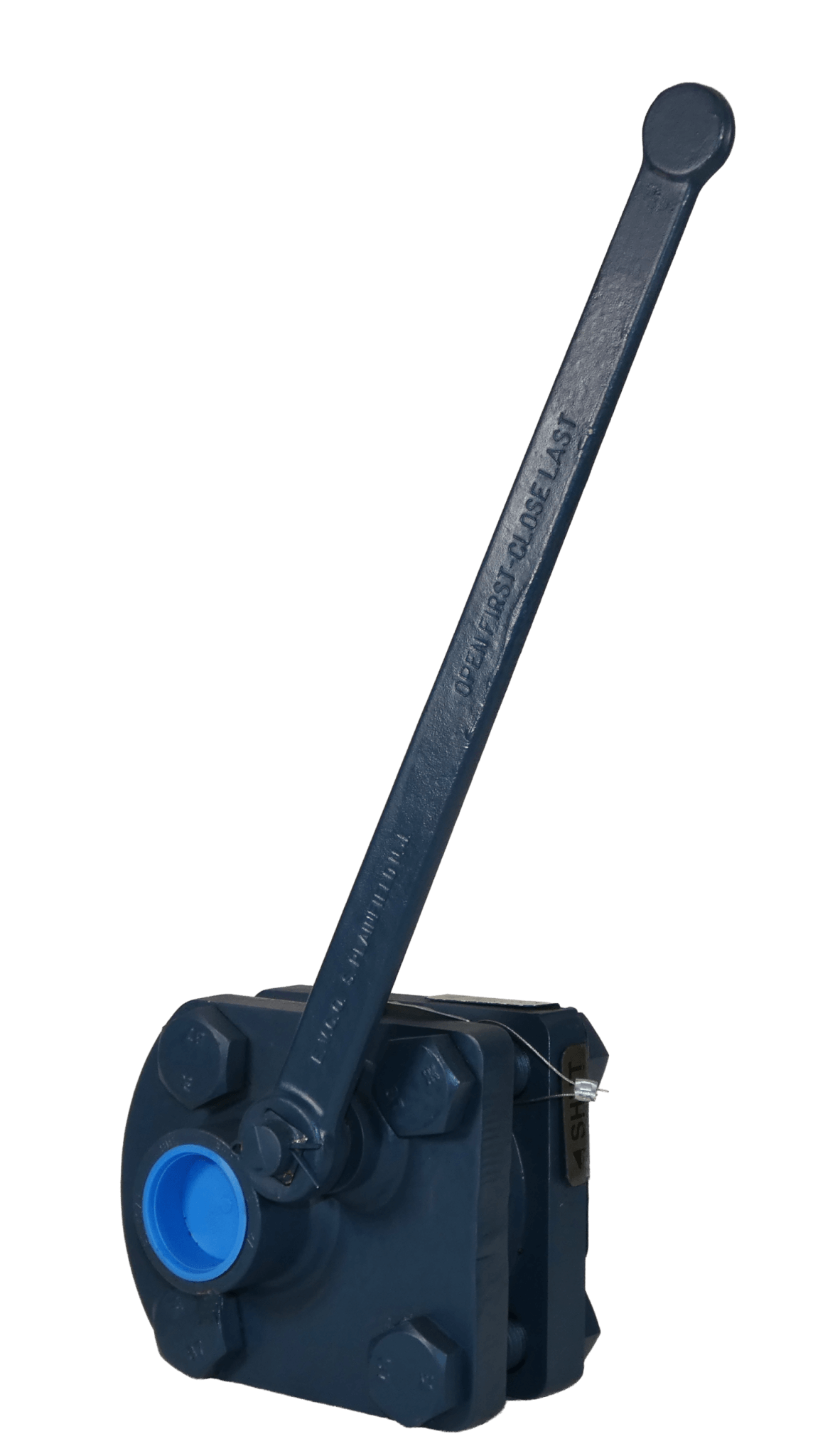

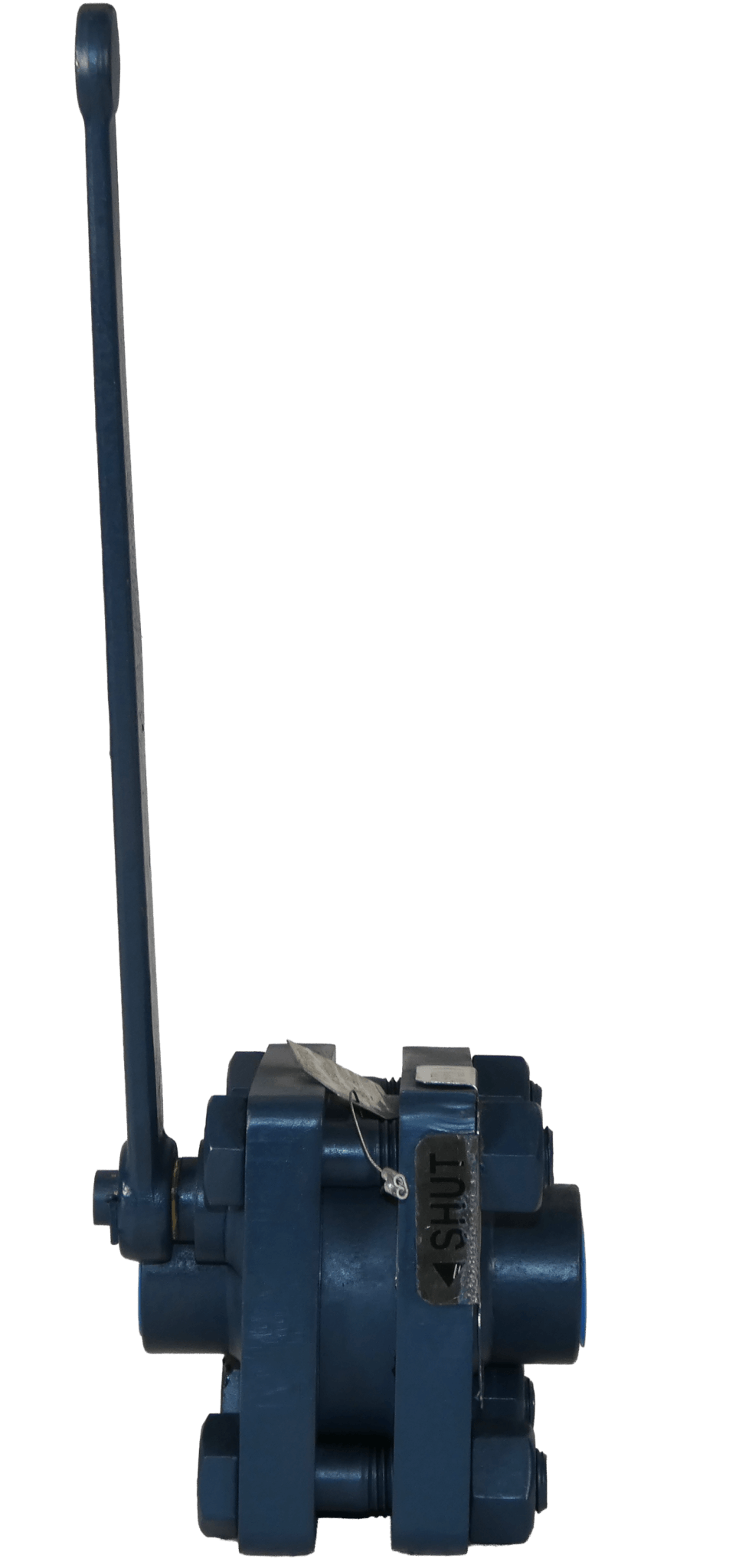

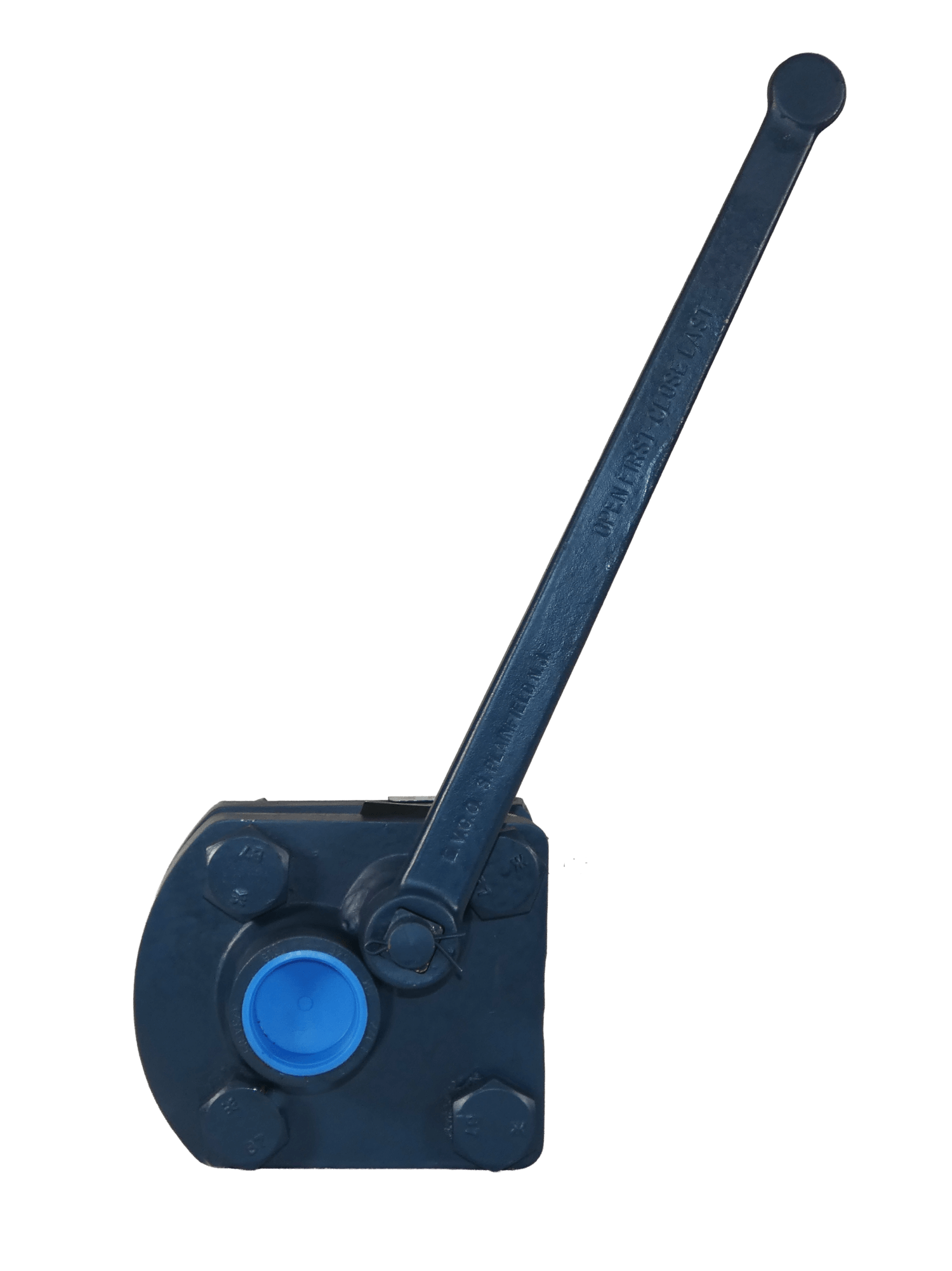

Quick Opening Valve Figure # 4000S(57) Steel Body, Threaded End, Straight Lever
Shipping timeline: In stock, typically ships next business day
Description
Figure 4000S Quick Opening Boiler Blowdown Valve provides rapid-opening boiler blowdown valve engineered to clear sludge and impurities in severe-service steam applications. Features a rugged iron body, threaded-end connections, and straight-lever operator for fast, positive actuation. Built for high-temperature, high-cycle service to deliver long life, reduced maintenance, and reliable performance.
Product Specs
| Weight | 31 lbs |
|---|---|
| Series | 4000 |
| Pipe Size (in.) | 1.5 |
| Valve Types | Quick opening |
| ANSI Valve Class (lbs.) | 300 |
| Max Blow-Off Pressure ASME Code (psi) | 490 |
| Face to Face (in.) | 6 |
Related products
-
4061S (57)-1.50
Slow Opening Valve Figure # 4061S(57), Steel Body, Flanged, Wheel Operated – 48 lbs
Details -
4061S(58)-1.50

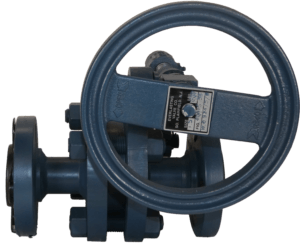

Slow Opening Valve Figure # 4061S(58), Steel Body, Flanged, Wheel Operated
