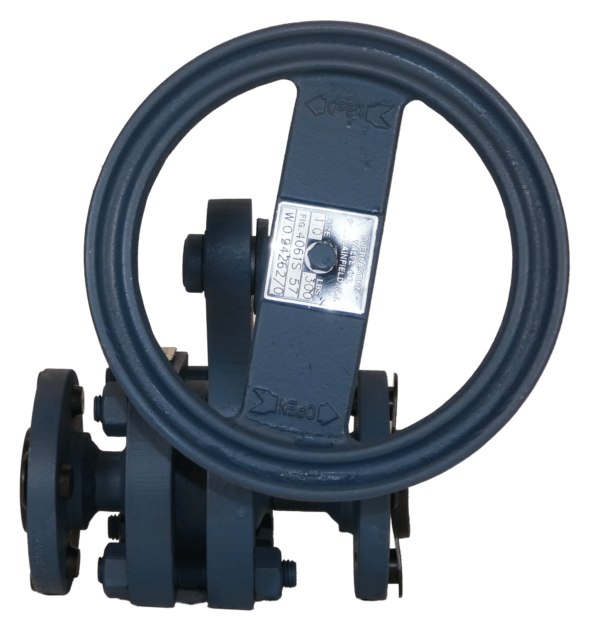

Slow Opening Valve Figure # 4061S(57), Steel Body, Flanged, Wheel Operated – 39 lbs
Description
Figure 4061S(57) Series Slow Opening Boiler Blowdown Valves are a controlled-opening valve designed for safe, gradual discharge in steam service. Features a durable carbon steel body, flanged connection, and straight-lever operator for precise, smooth actuation. Engineered for high-temperature, high-cycle applications to minimize thermal shock, extend service life, and reduce maintenance costs
Product Specs
| Weight | 39 lbs |
|---|---|
| Series | 4000 |
| Pipe Size (in.) | 1 |
| Valve Types | Slow opening |
| ANSI Valve Class (lbs.) | 300 |
| Max Blow-Off Pressure ASME Code (psi) | 490 |
| Face to Face (in.) | 7.625 |
Related products
-
4001S(57)-1.00
Quick Opening Valve Figure # 4001S(57) Steel Body, Flanged, Straight Lever – 20 lbs
Details -
4000S(57)-1.00
Quick Opening Valve Figure # 4000S(57) Steel Body, Threaded End, Straight Lever
Details -

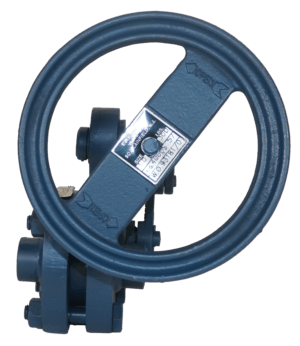

4060S (57)-1.00
